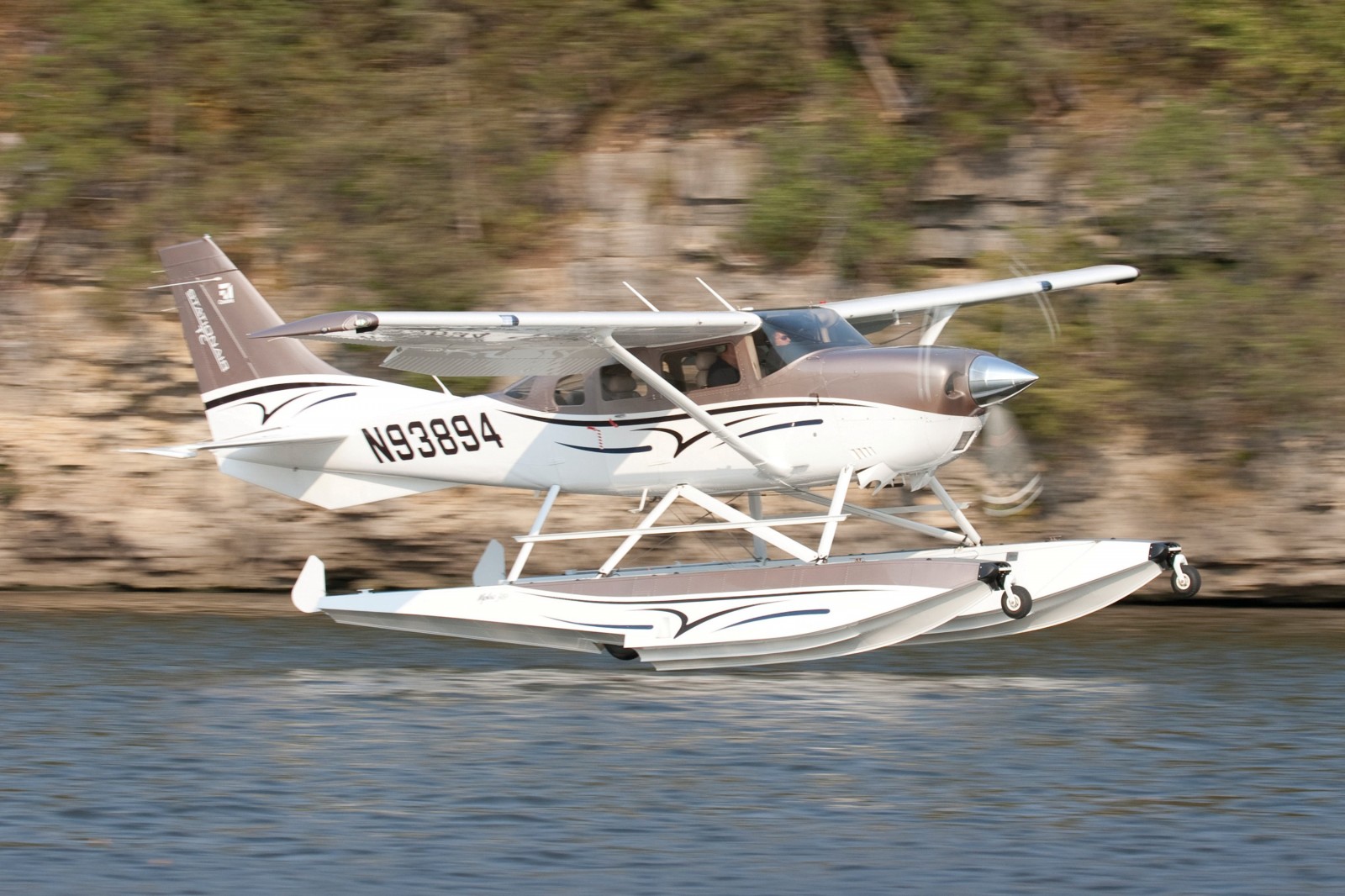

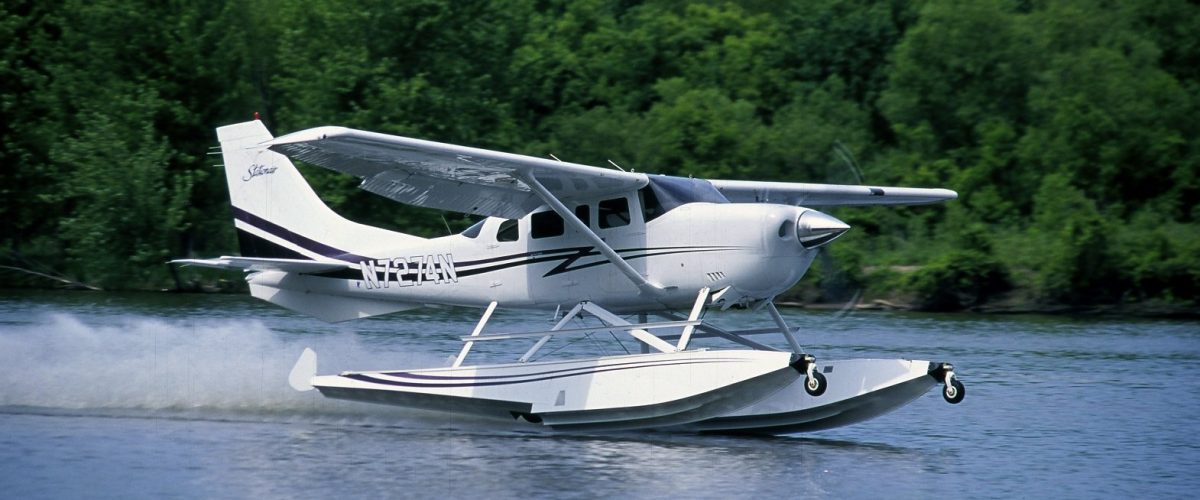

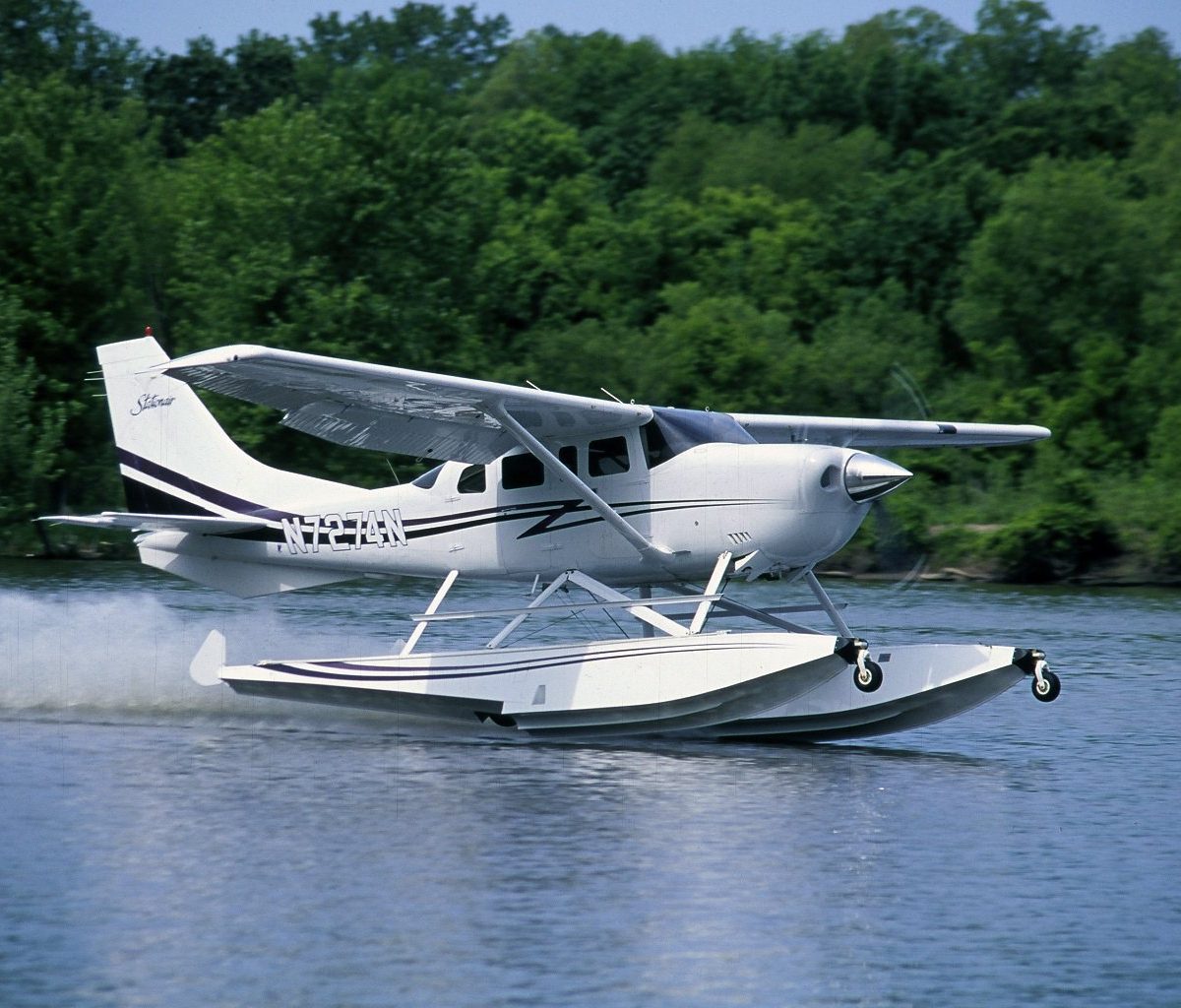

For outstanding performance and reliability on hard surface runways, grass strips or your favorite lake or river the Wipline 3450 floats give you the best of both worlds.
The Wipline 3450 float was designed using the latest C.A.D. (Computer Aided Design) technology. The aluminum parts and skins are laser cut and all rivet holes are pre-punched. This means replacement parts are a perfect fit. The main keel has a removable wear strip for ease of maintenance. With this technology we are able to build the 3450 float to be ultra light and still north-country rugged.
Wipline 3450 Floats are available for installation on:
|Length – Seaplane||22'10" (6.96 m)|
|Length – Amphibian||23'5" (7.13 m)|
|Height – Hull||2'5" (0.74 m)|
|Width – Hull||2'8" (0.81 m)|
|Float Locker Capacity (each)||50 lbs (22.7 kg)|
|Displacement in Fresh Water|
|Amphibious Floats||3,600 lbs (1,633 kg)|
|Seaplane Floats||3,776 lbs (1,713 kg)|
|Amphibious Floats||4,000 lbs (1,814 kg)1,2|
|Seaplane Floats||4,196 lbs (1,903 kg)1|
|1) Per FAR 23.751with 80% reserve buoyancy (2 floats)
2) 206H (normally aspirated) has a gross weight restriction of 3,775 lbs for land takeoff only.
|Weight for 3450 Floats on a Cessna 206|
|Amphibian System Total Weight||694 lbs (315 kg)|
|Amphibian Exchange Weight||532 lbs (241 kg)3|
|Seaplane System Total Weight||491 lbs (223 kg)|
|Seaplane Exchange Weight||329 lbs (149 kg)3|
|Aircraft Gross Weight||3,792 lbs (1,720 kg)|
|3) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.|
|Cessna 206 Performance on Amphibious Floats|
|Engine||IO-540 (300 HP)||TIO-540 (310 HP)|
|Take off run (land)||1,146 ft (349 m)||1,132 ft (345 m)|
|Take off over 50 ft obstacle (land)||1,830 ft (558 m)||1,876 ft (572 m)|
|Take off run (water)||1,770 ft (539 m)||1,821 ft (555 m)|
|Take off over 50 ft obstacle (water)||2,850 ft (869 m)||2,954 ft (900 m)|
|Rate of climb (per/min)||770 ft (235 m)||982 ft (299 m)|
Wipline 3450 Pricing
|Aircraft||Floats & Rigging||Installation||Total|
|Cessna A185E, F||$104,600||$54,500||$10,100||$6,600||$114,700||$61,100|
- All amphibious floats include landing gear advisory system.
- Float rigging and FAA STC paperwork included.
- Call for discount details if the aircraft has seaplane modifications previously installed.
- Product installation assumes standard factory aircraft. Non-standard aircraft may be subject to additional installation charges
- Float paint option:
- Overall base color to match aircraft is included.
- Two trim colors to match scheme of aircraft is included.
- Additional trim colors quoted per color and paint scheme.
- Complex paint scheme, inboard and bottom painting of floats, please call for pricing.
- Paint information and paint scheme will be requested at the time of deposit. If paint colors are not provided, we will match colors to the best of our ability, but will not guarantee 100% match or a definite delivery date.
- Customer choice of polyurethane or silver-gray submersion paint is included. There is no paint warranty for polyurethane floats stored in water for extended periods.
- Pricing for models E & F assume the aircraft is equipped with a factory float kit "B" and all necessary components including steering bungee, steering bellcranks, ventral fin, tail stinger, lifting rings, seaplane rudder, seaplane prop and windshield V brace are installed on or with aircraft as the case may be.
- All 206 aircraft through model G assume the aircraft is equipped with a factory float kit "B" and all necessary components
including steering bungee, steering bellcranks, ventral fin, tail stinger, lifting rings, seaplane rudder, seaplane prop and
windshield V brace are installed on or with aircraft as the case may be.
- All 206 through model G that are not equipped with a factory float kit can be equipped with the Cessna 206H float kit at the
same price as the model H float kit.
- Rigging Kit for a 206H and T206H and non float-kitted U206 and TU206 through Model G include extensive airframe and
firewall modifications including seaplane rudder, tail stinger, ventral fin, steering bungee, and numerous brackets and steering
control parts. Hartzell landplane/seaplane propeller is required but not included in above pricing for 206H and T206H.
- If factory float provisions, hoisting rings are not installed and "V" brace (loose equipment) is not supplied, contact your sales
representative for pricing.
- Factory installed WX500 Antenna repositioning and skin mapping - $1,900 – T206H and 206H models.
- Cessna 206H, T206H G1000 software update package developed by Cessna/Garmin that enables changes in flight
parameters required to be displayed on G1000 - add $1,350
- Aircraft equipped with air conditioning, add $10,675 for hydraulic water rudder retract system (installed).
- Cessna 206 with Soloy conversion and landplane exhaust - requires Soloy Kit 766-1077-1 (contact your sales representative
for current pricing) plus $2,310 for installation.
- Cessna 206 with Soloy conversion - add $550 for installation of steering bungee bracket.
Prices in U.S. dollars, FOB St. Paul, Minnesota, USA, and are subject to change without notice. Prices do not include taxes, duties or tariffs. They also may vary if custom work is required or requested.
Effective for floats quoted after December 1, 2017.
