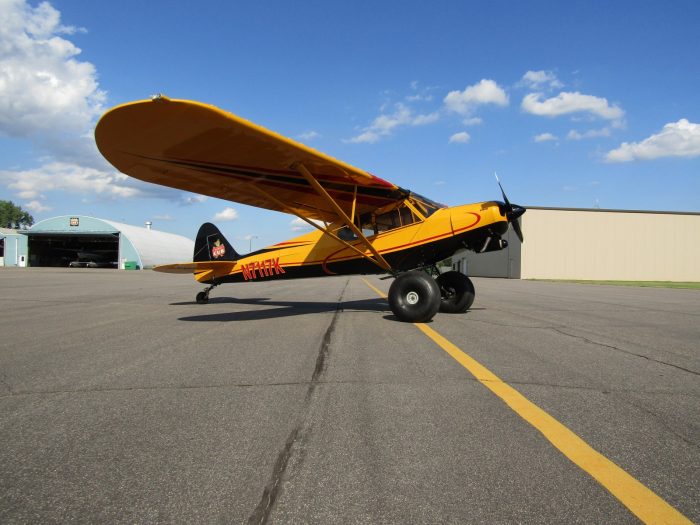

SOLD – 1950/2013 Piper PA-18 Super Cub
Amy Gesch
Office: (651) 414-6839
Cell: (952) 239-6890
Email: agesch@wipaire.com
SOLD -Showstopper Super Cub! Extensive 2013 rebuild with 180 hp O-360 engine, McCauley “Borer”-style prop, 3” extended gear w/ Alpha Omega Suspension System and 31” Alaskan Bushwheels, Cleveland wheels and brakes w/ Dakota Cub high-pressure brake master cylinders, folding front seat, rear seat heat, upper and lower extended baggage, extended-range fuel tanks, vortex generators, the list goes on. Beautiful panel features Aspen EFD1000 primary flight display, Garmin GTN-650 touchscreen nav/com/GPS, Garmin aera 796 touchscreen portable GPS, Garmin GTX-33ES ADS-B Out transponder, and MVP-50 digital engine monitor. July 2020 annual, ready to go and stunning!
140 Hrs Since Rebuild
2,810 Hrs SNEW
Lycoming O-360 180 hp
140 Hrs SMOH
2-Blade McCauley 8242 “Borer”
2013-2020 STCs & Modifications
- Lycoming O-360 STC Svenn’s Aviation STC SA03061CH
- Professional Pilots Sutton Exhaust STC ST01920CH
- McCauley 1A200FA8242 “Borer”-Style Prop Svenn’s Aviation STC SA002751CH
- Randy Rubbert Baffling & Oil Coolers STC SA03034CH
- Randy Rubbert Lower Cowling & Airbox STC SA03035CH
- CubCrafters Headerless Fuel System STC SA00415SE
- CubCrafters Elevator Gap Seals STC SA02134SE
- CubCrafters Tall Instrument Panel STC SA00572SE
- CubCrafters Windows STC SA01126SE
- CubCrafters Floorboards STC SA00495SE
- Atlee Dodge Underseat Battery STC SA02156AK
- Atlee Dodge Pilot Seatbelt Relocation STC SA02043AK
- Atlee Dodge Folding Front Seat STC SA02085AK
- Atlee Dodge Removable Rear Seat Crossbar STC SA681AL
- Atlee Dodge Rear Seat Heat STC SA02094AK
- Atlee Dodge Fuselage X-Brace STC SA02011AK
- Dakota Cub Extended-Range Fuel Tanks (46-Gallon Total Capacity) STC SA02171AK
- Dakota Cub Underseat Storage STC SA02366AK
- Dakota Cub High-Pressure Brake Master Cylinders STC SA02234AK
- Dakota Cub High-Capacity Gascolator STC SA02295AK
- Dakota Cub Stabilizer Trim System STC SA02309AK
- Dakota Cub Fuel Selector Valve (Left/Right/Both/Off) STC SA02299AK
- Dakota Cub High-Visibility Fuel Sight Gauges STC SA02233AK
- Alaskan Bushwheel “Baby Bushwheel” STC SA01233SE
- Northern Airframes Weld-On Float Fittings STC SA02262AK
- Burl’s Aircraft Alpha Omega Suspension System STC SA02214AK
- Micro Aerodynamics Vortex Generators STC SA00530SE
- Aspen EFD1000 Primary Flight Display STC SA10822SC
- Garmin GTN-650 Nav/Com/GPS STC SA02019SE
- Garmin GTX-33ES ADS-B Out Transponder STC SA01714WI
- Electronics International MVP-50 Digital Engine Monitor STC SA01988SE
- Polyfiber Covering STC SA1008WE
- Extended Baggage w/ Large Door (50 lbs.)
- Upper Extended Baggage w/ Door
- LED Landing & Taxi Lights
- 3” Extended Landplane Gear with 31” Alaskan Bushwheel Tires & Baby Bushwheel Tailwheel
-
- Cleveland Wheels & Brakes
- Alpha Omega Suspension System (AOSS)
- Atlee Dodge Safety Cables
- Heel Brakes Front & Rear w/ Parking Brakes
- Artex 406 MHz ELT
Empty Weight: 1,153 lbs.
- Aspen EFD1000 Evolution Primary Flight Display
- Garmin GTN-650 Touchscreen Nav/Com/GPS
- Garmin aera 796 Touchscreen GPS
- Garmin GTX-33ES Transponder w/ ADS-B Out
- Electronics International MVP-50 Engine Indicating System
- Electronics International Digital Voltmeter/Ammeter
- PS Engineering PM3000 Intercom
- 12V Auxiliary Power Outlet
- Auxiliary Music Input
- Black Leather w/ Cub logo
- Wood Flooring w/ Vinyl Covering
- Cub Yellow and Black w/ Red Striping
