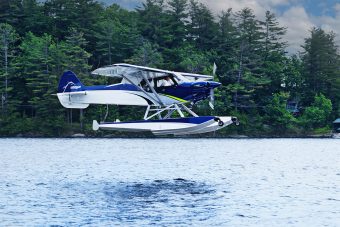

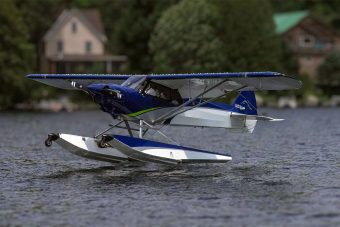

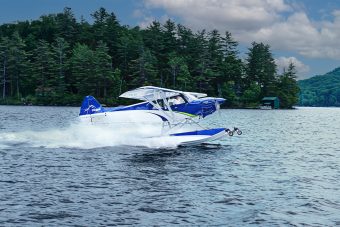

CubCrafters XCub/NXCub

Add Wipline 2100 floats to your XCub/NXCub and you’ll increase the adventure! Start the day from the dock and end it at a beach campsite. Go fishing in remote lakes, far from boat traffic. Freedom to Explore™ begins here.

Wipline Floats are known for both performance and durability and with almost 60 years in the business you can buy with confidence knowing that we’ll still be here to support our products for years to come.

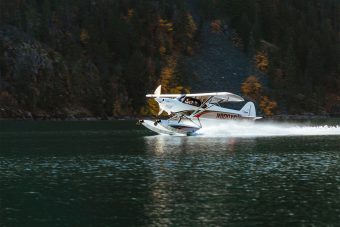

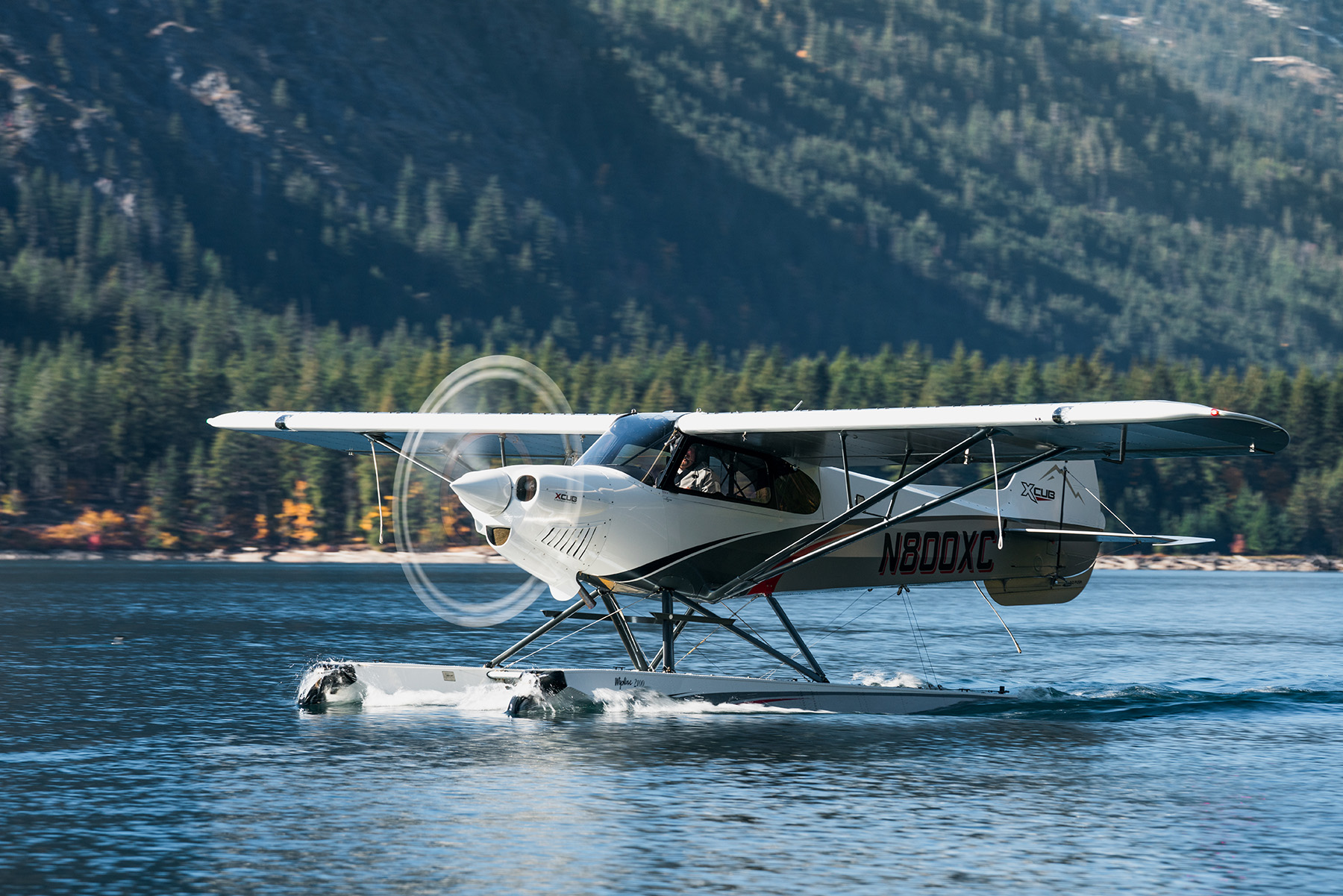

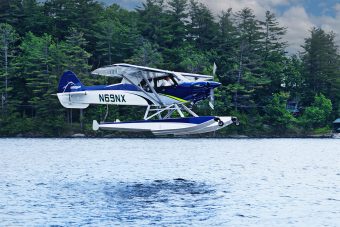

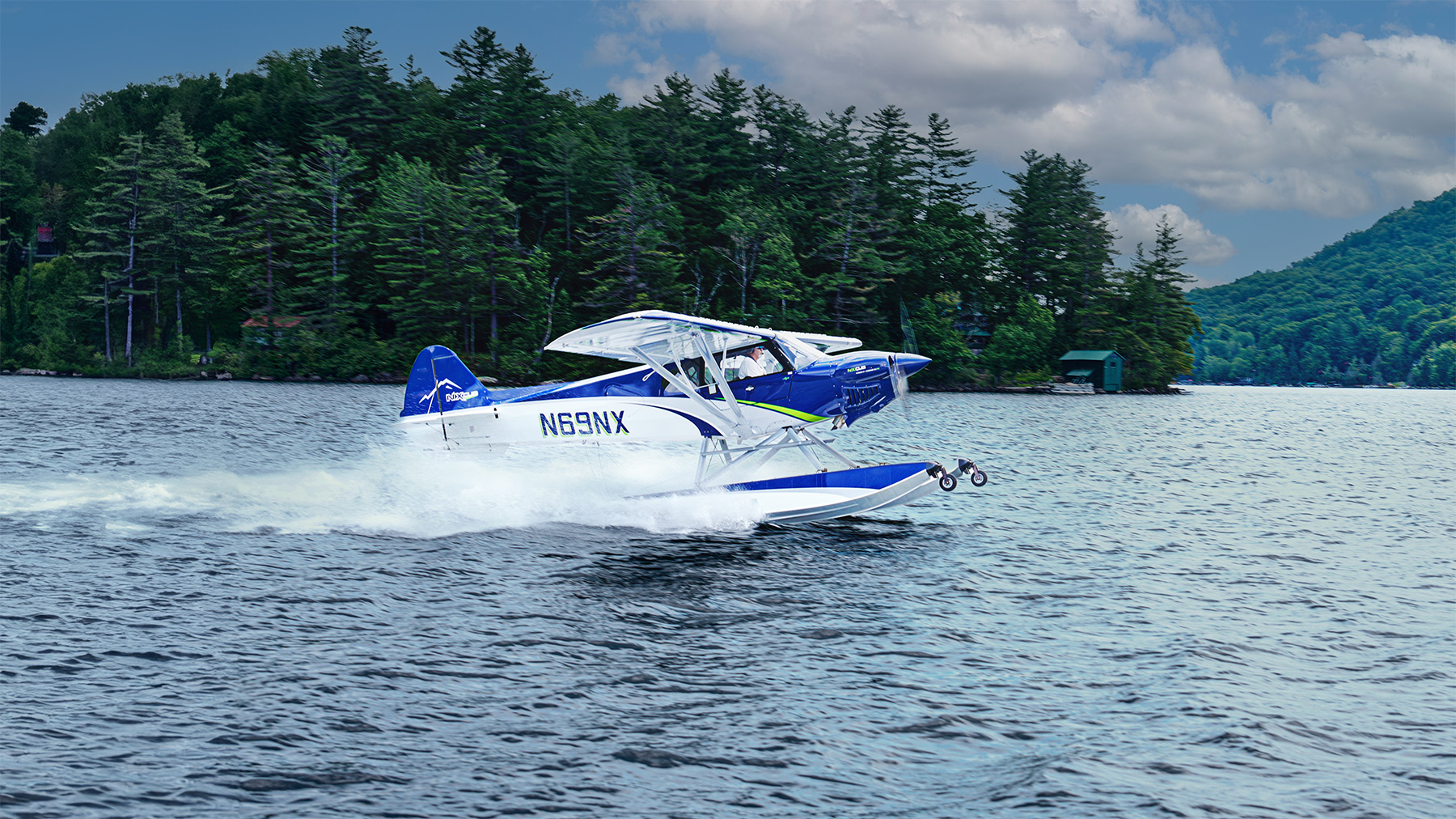

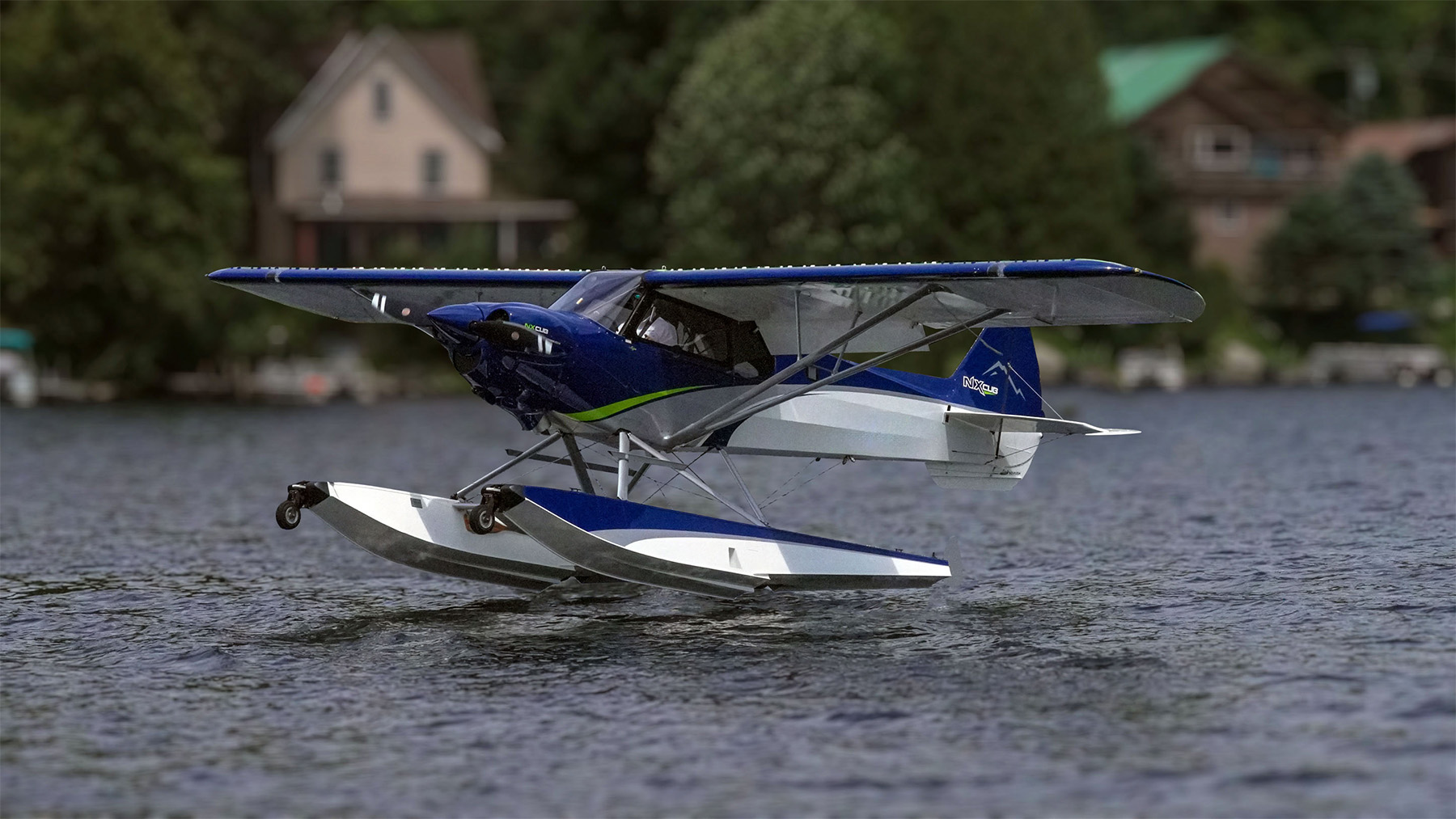

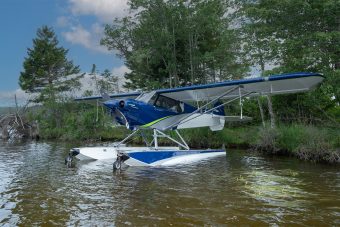

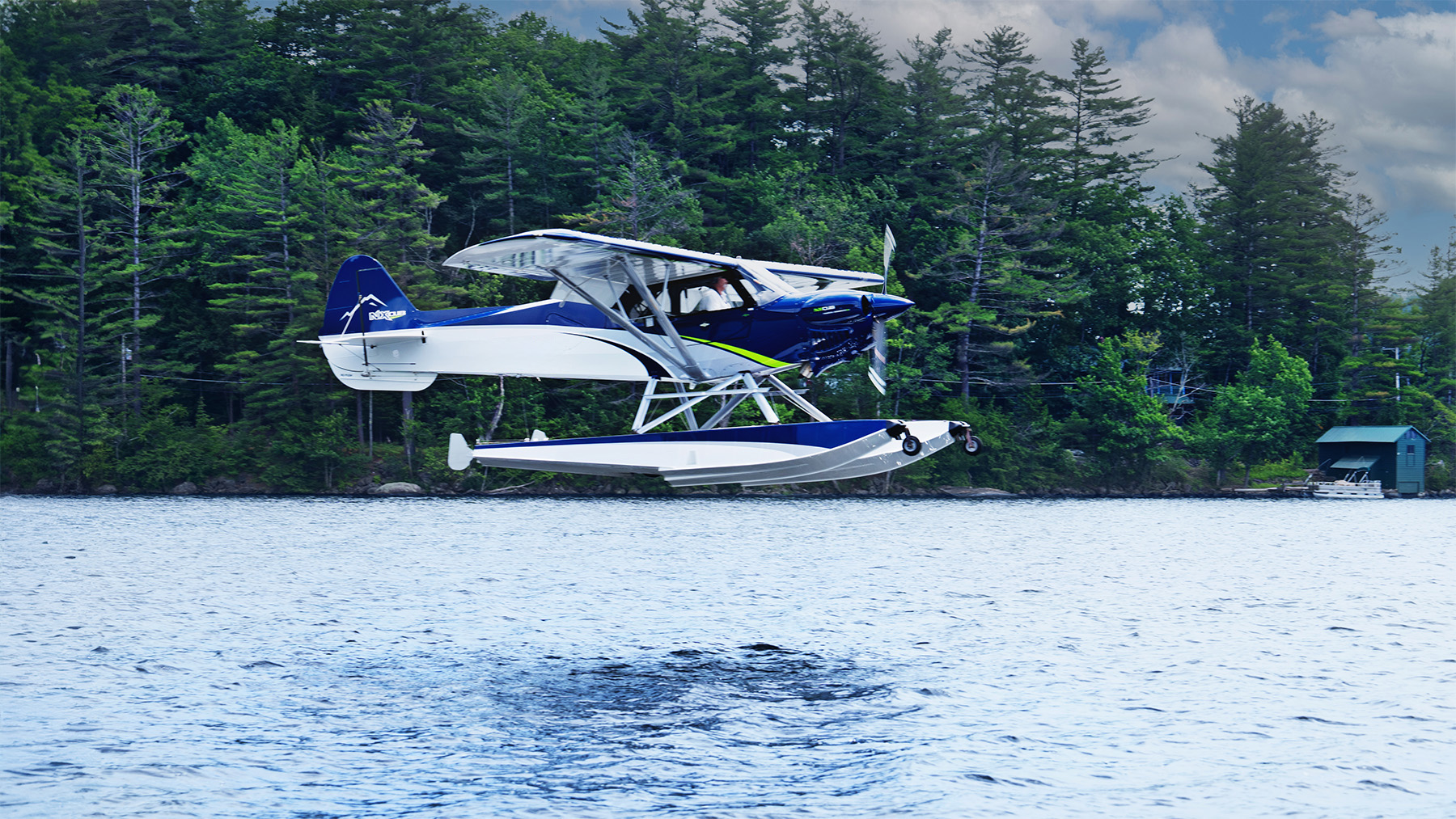

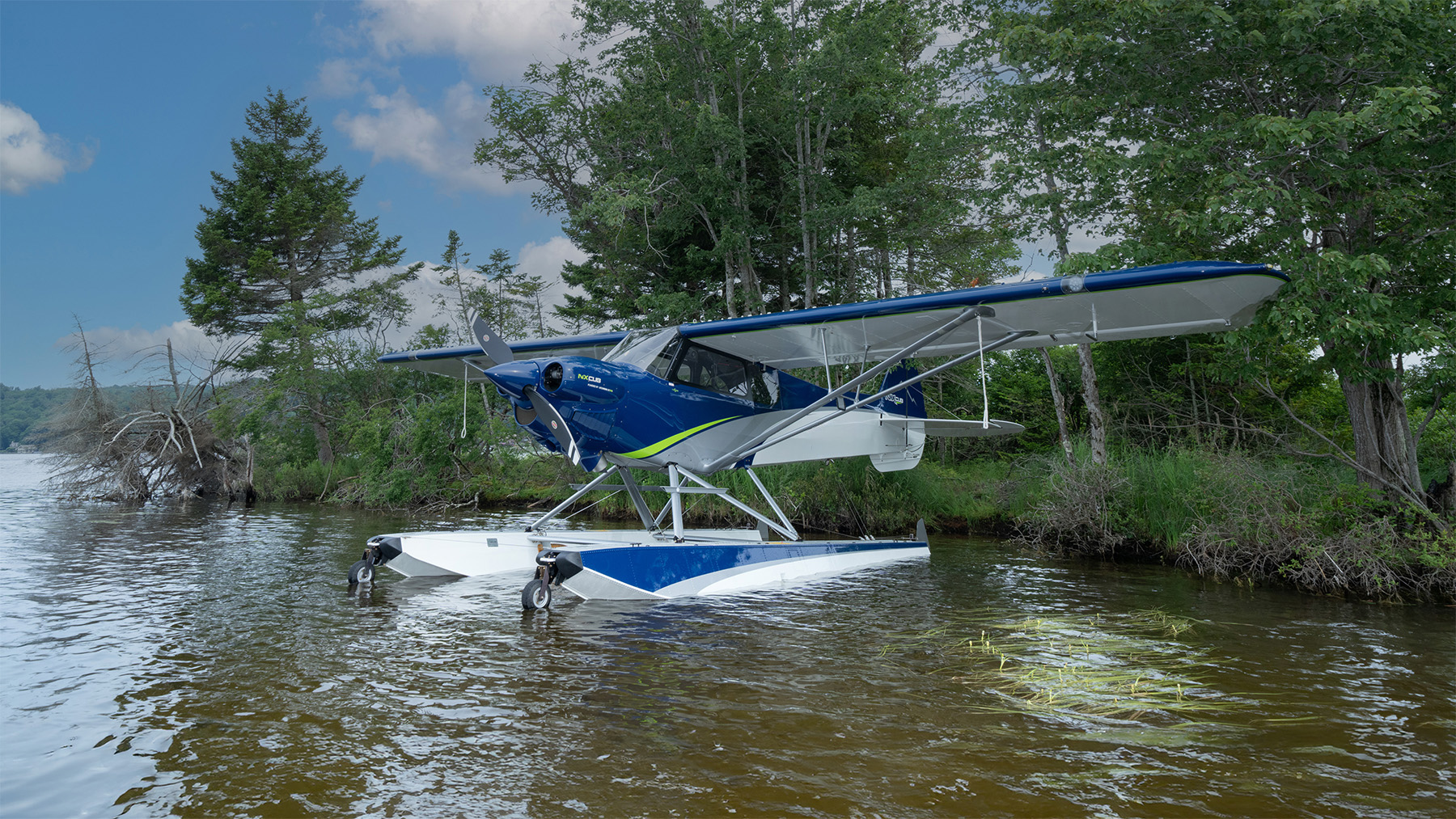

Wipline 2100 Floats for XCub/NXCub

Features and Benefits

Amphibious or seaplane floats available
High bow buoyancy and a higher deadrise angle on our forward bottoms for improved handling in wind and choppy water
Best nose and main gear on the market, proven in the field and imitated by competitors
Non-skid coated, flat top decks for safety
Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
Two large float hatches for gear, measuring 20 3/8″ by 10 1/2″ with 50 pounds carrying capacity each
Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly

Specifications

Float Dimensions
Length – Seaplane	17’7″ (5.36 m)
Length – Amphibian	17’11” (5.46 m)
Height – Hull	1’11” (0.58 m)
Width – Hull	2’5″ (0.74 m)
Float Locker Capacity (each)	50 lbs (22.7 kg)

Displacement in Fresh Water
Amphibious Floats	2,185 lbs (991 kg)
Seaplane Floats	2,323 lbs (1,054 kg)

Maximum Flotation
Amphibious Floats	2,428 lbs (1,101 kg)¹
Seaplane Floats	2,581 lbs (1,171 kg)¹
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)
