Articles Tagged "Cessna 206"

COMING SOON: Cargo Door Handle for the Cessna 206

Alternative Method of Compliance to Canadian TCCA
Airworthiness Directive CF 20202-10

The Most Elegant & Affordable Cargo Door Egress Modification

Our soon to be released Cargo Door Handle modification improves  passenger safety and satisfies Canadian TCCA Airworthiness Directive CF 20202-10.

When equipped with our modification the rear cargo door can be easily opened by passengers. This includes situations where the forward cargo door is blocked by the flaps.

The Best Solution for Your Stationair

  • Lower total cost – less than $10,000 installed
  • 1-Day installation
  • One hand operation
  • Open the rear cargo door while the forward door is blocked by  lowered flaps
  • No modification to forward door or window
  • Does not scrape flap
  • No wind noise
  • Installed at Wipaire or in the field
  • Optional forward door external handle
  • Optional Co-Pilot Door for even greater safety

cALL aMY OR sTEVE FOR MORE INFORMATION

Amy Gesch – Canada, US & Caribbean
Office: (651) 414-6839
Cell: (952) 239-6890
Email: agesch@wipaire.com
Steve Zuercher – International
Cell:(352) 805-5888
email:szuercher@wipaire.com
Cessna 206 on Wipline 3450 Floats

Co-Pilot Door

The co-pilot door for the Cessna 206 adds an immense amount of safety and convenience for the front seat passengers of your aircraft by allowing a convenient third way of entering or exiting the aircraft.

This feature is especially desirable when docking on the right side of the aircraft in the case of seaplane operation, and it is also extremely valuable as a way to exit the aircraft in an emergency where the pilot door is jammed or blocked.

The door is manufactured from carbon reinforced composite material and utilizes Cessna manufactured hinges and latches to appear identical to the pilot door. An opera window is installed between the new door and the rear double doors. The door is comprised of an outer aluminum skin and a fiberglass composite inside, with an inner “Royalite”, formed plastic panel.

Portions of your original interior are cut and added to the inside door panel to maintain the inside decor. An armrest and grab handle are also installed. The outside is painted to blend the new door into the fuselage so the outside looks factory original.

Cessna 206 IO-550 Engine Upgrade

One of the most effective ways of enhancing the capability and performance of your 206 is to add an IO-550 engine and Hartzell or McCauley “Power Prop”.

Wipaire was the pioneer in this modification, being the first to recognize its true potential. It provides the ability to use 300+ horsepower continuously, if desired, to realize significant gains in climb and cruise performance. Seaplane operation will notice and appreciate the extra 150 to 175 pounds of additional thrust that the combination provides. It also promotes a “good neighbor” environment because of its significantly lower noise level.

This modification teamed with the Wipline 3450 float provide a 200 lb gross weight increase on most F and G model 206 aircraft. Call us today to learn more about this exciting product that is sure to enhance your investment and your total flying experience.

206 IO-550 Engine Kit Includes:

  • Mount Isolators
  • Mount Bolts
  • Locking Tabs
  • Ground Straps
  • Barrel Nuts
  • Fluid Hose Kit
  • Bushings
  • Spacers
  • Placards
  • Man Pressure/Fuel Flow Gauge (Exchange)
  • Tachometer (Exchange)
  • Paperwork and STC

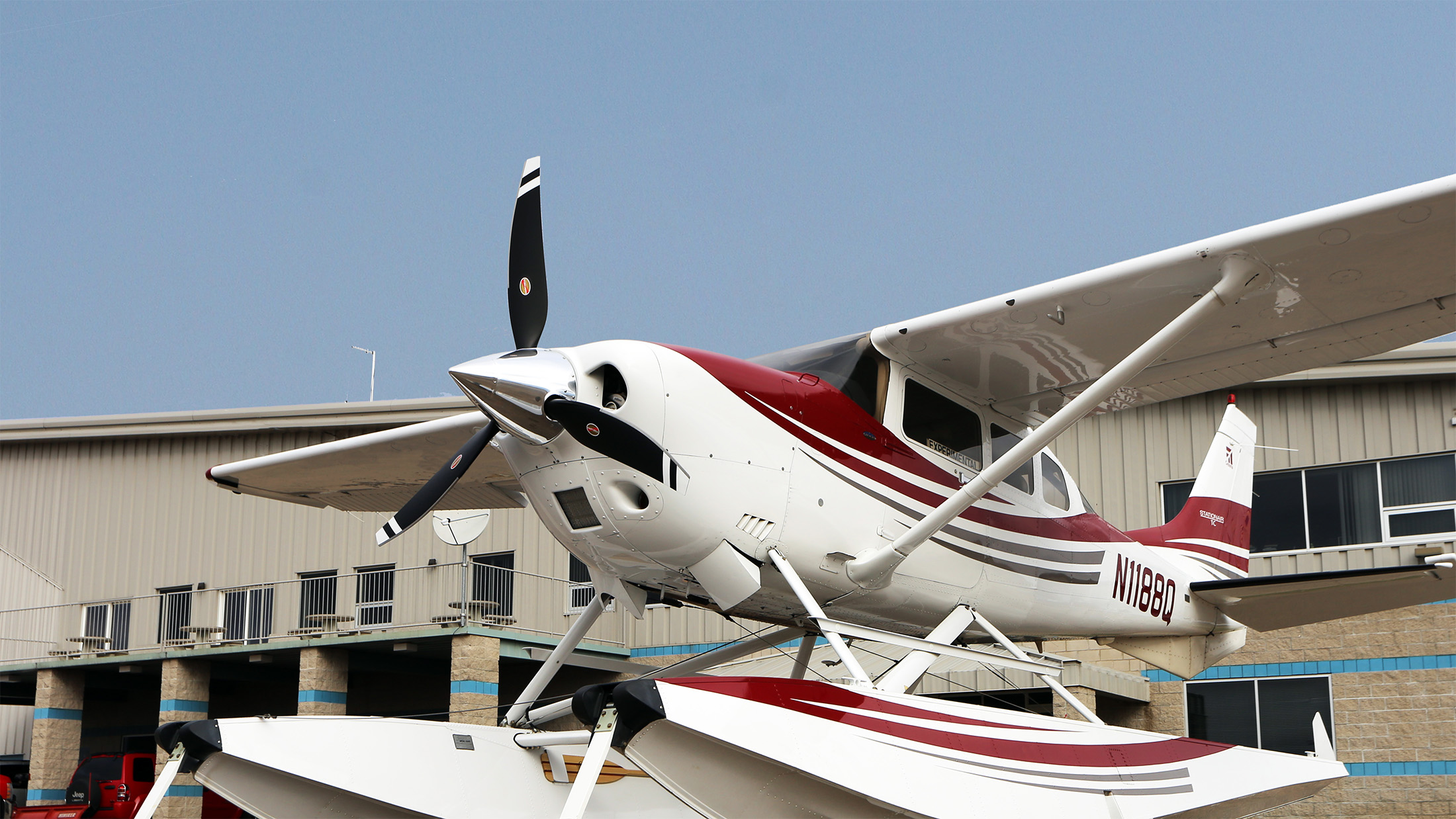

Hartzell Trailblazer Propeller Upgrade

The new carbon fiber composite Hartzell Trailblazer series 84″ propeller is available for Cessna T206H models in both landplane and seaplane configurations. Benefits of the Trailblazer propeller include a significant weight reduction, improved take-off performance and no RPM limitation. This propeller is truly a powerhouse that will help you get the best performance possible out of your Cessna T206H.

  • Durable, field-replaceable nickel cobalt leading edge
  • Nickel erosion screen for foreign object damage protection
  • Thinner blade with a wider chord for improved performance
  • Designed to be quieter than comparable propellers
  • Carbon fiber composition is 5-10x stronger than natural fiber propeller cores
  • 19.2 lbs lighter than the Hartzell aluminum floatplane prop
  • 8.9 lbs lighter than the McCauley landplane prop

Wip Tips Modification

“Wip” Tips are a valuable and attractive modification to add to your Cessna 206. There are several improvements this will bring to your flying experience.

First, the “Wip” Tip extends the wings by 18 inches. By extending the wings you get increased performance of your aircraft. Our “Wip” Tips increase the rate of climb and reduce the take off and landing distances. If you have ever made a takeoff on a hot, muggy summer day, you know how critical the last two knots of airspeed are. “Wip” Tips make a big difference in helping you on your way. At the same time it will save on fuel cost between 1 and 2 percent.

It is also important to know our “Wip” Tips increase your flying stability at low speeds as well as increase safety margins in all phases of flight. Stall speeds are also significantly reduced. There are several other improvements this “Wip”Tip modification will bring to your flying experience which you can hear about when you call us at 651.451.1205
