Wipline® 3000 Floats
Whether on hard surface runways, grass strips or your favorite river or lake, the Wipline 3000 float gives you the best of both worlds. A fluted bottom skin with sister keels – or “Speed rails” – assures excellent performance in a wide range of water conditions. The largest baggage hatch in the business is standard in both floats (25 3/4 x 12 inches with 9.5 cubic feet storage space). The aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts are a perfect fit. The main keel has a removable wear strip for ease of maintenance. The latest technology enabled us to build the 3000 float to be both ultra light and still north-country rugged.
Wipline 3000 Floats are available for installation on:
Features & Benefits
- Amphibious or seaplane floats available
- Modern hydrodynamic design with fluted bottom skins, sister keels and high bow buoyancy to get off the water quickly and perform in a wide range of conditions
- Best nose and main gear on the market, proven in the field and imitated by competitors
- Internal cables for water rudder controls
- Non-skid coated, flat top decks for safety
- Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
- Two large float hatches for gear, measuring 25 3/4″ x 12″ with 50 pounds carrying capacity each
- Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
- Replaceable wear strips on main keel for ease of maintenance

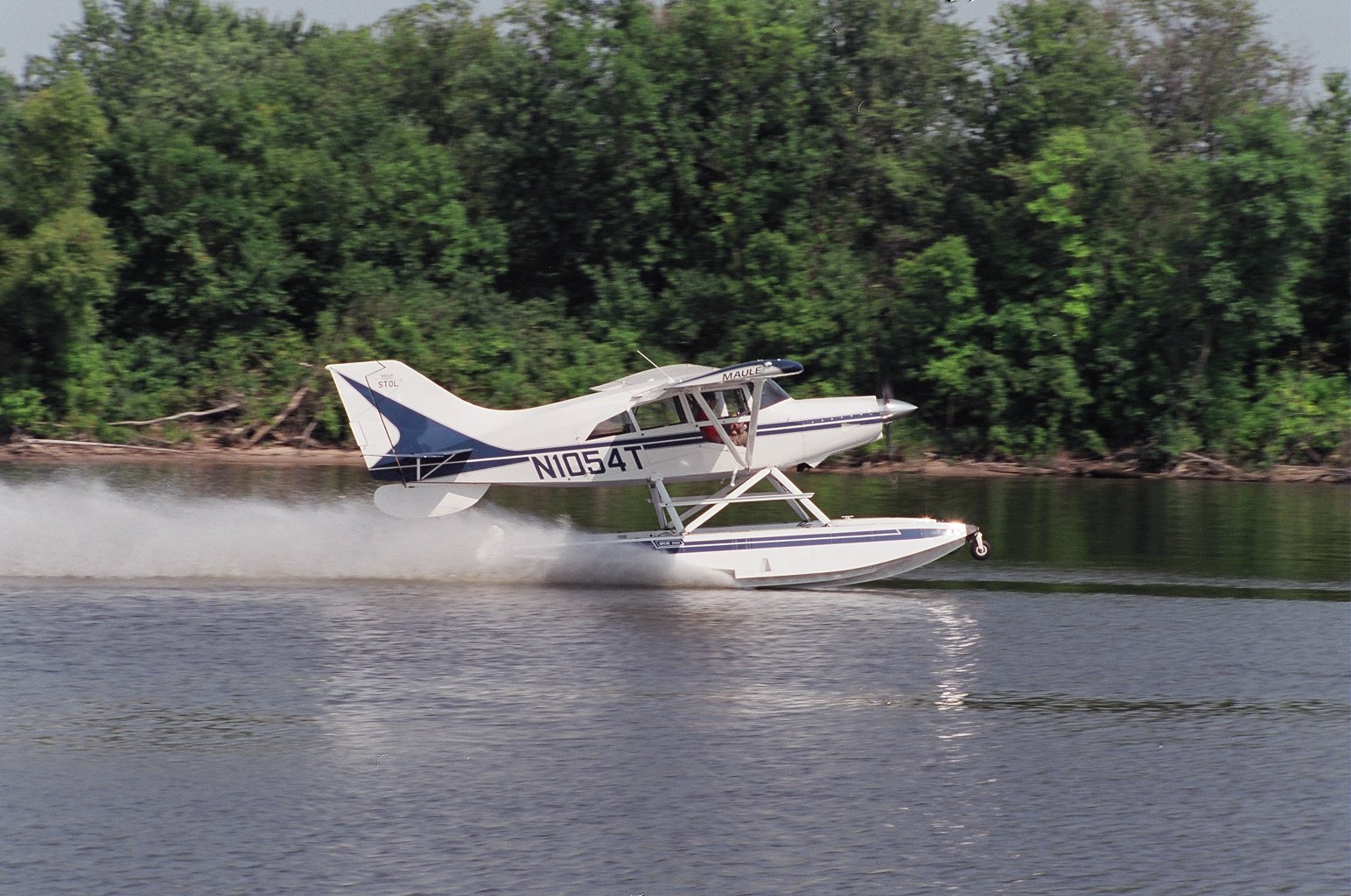

Maule on Wipline 3000 Floats
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Specifications for Wipline 3000 Floats
Float Dimensions | |
Length – Seaplane | 20’1″ (6.12 m) |
Length – Amphibian | 20’8″ (6.3 m) |
Height – Hull | 2’5″ (0.74 m) |
Width – Hull | 2’8″ (0.81 m) |
Float Locker Capacity (each) | 50 lbs (22.7 kg) |
Displacement in Fresh Water | |
Amphibious Floats | 3,125 lbs (1,417 kg) |
Seaplane Floats | 3,301 lbs (1,497 kg) |
Maximum Flotation | |
Amphibious Floats | 3,472 lbs (1,575 kg)1 |
Seaplane Floats | 3,668 lbs (1,664 kg)1 |
1) Per FAR 23.751with 80% reserve buoyancy (2 floats) |
Weight for 3000 Float on a Cessna 180 | |
Amphibian System Total Weight | 633 lbs (287 kg) |
Amphibian Exchange Weight | 483 lbs (219 kg)2 |
Seaplane System Total Weight | 432 lbs (198 kg) |
Seaplane Exchange Weight | 282 lbs (128 kg)2 |
Aircraft Gross Weight 180-180F | 2,850 lbs (1,293 kg) |
Aircraft Gross Weight 180G-180K | 2,950 lbs (1,338 kg) |
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. |
Weight for 3000 Floats on a Cessna 182 | |
Amphibian System Total Weight | 641 lbs (291 kg) |
Amphibian Exchange Weight | 498 lbs (226 kg)2 |
Seaplane System Total Weight | 439 lbs (199 kg) |
Seaplane Exchange Weight | 296 lbs (134 kg)2 |
Aircraft Gross Weight | 3,250 lbs (1,474 kg) |
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. |
Cessna 182 Performance on Amphibious Floats | |
Engine | IO-540 (230 HP) |
Take off run (land) | 1,174 ft (358 m) |
Take off over 50 ft obstacle (land) | 1,730 ft (527 m) |
Take off run (water) | 1,645 ft (501 m) |
Take off over 50 ft obstacle (water) | 2,463 ft (751 m) |
Rate of climb (per/min) | 749 ft (228 m) |
Weight for 3000 Floats on a Cessna 185 | |
Amphibian System Total Weight | 632 lbs (287 kg) |
Amphibian Exchange Weight | 483 lbs (219 kg)2 |
Seaplane System Total Weight | 432 lbs (198 kg) |
Seaplane Exchange Weight | 282 lbs (128 kg)2 |
Aircraft Gross Weight | 3,350 lbs (1,519 kg) |
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. |
Cessna 185 Performance on Amphibious Floats | |
Engine | Continental IO-520 |
Take off run (land) | 760 ft (231 m) |
Take off over 50 ft obstacle (land) | 1,325 ft (404 m) |
Take off run (water) | 1,125 ft (343 m) |
Take off over 50 ft obstacle (water) | 1,710 ft (521 m) |
Rate of climb (per/min) | 950 ft (290 m) |
