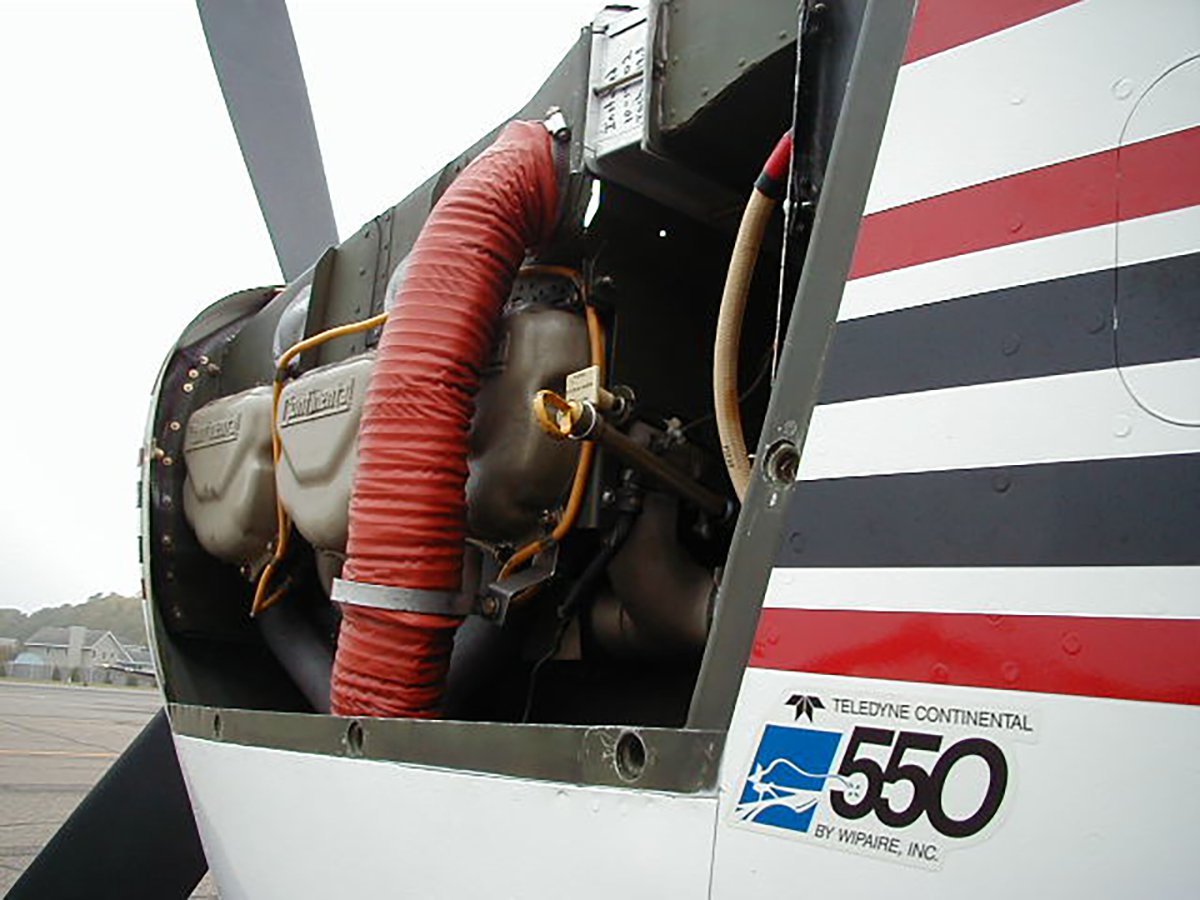

IO-550D Engine Upgrade
More power? Greater performance? One of the most effective ways of enhancing the capability and performance of your C-185 is to add an IO-550 engine and Hartzell or McCauley “Power Prop”. Wipaire pioneered this modification, realizing its potential to really create a hot-rod of a seaplane. The Wipline IO-550 upgrade is rated at 300 Horsepower, like the standard 520, but is rated at a higher torque, giving you 8-10% better performance, an additional 150 to 175 points of thrust for seaplanes, and quieter ride. Unlike the 520, the IO-550 enables a maximum continuous cruising rate at 300 HP instead of just 285HP.
Call us today to learn more about this exciting product that is sure to enhance your investment and your total flying experience.
The IO-550D Engine Upgrade can give your 185 that extra get up and go that you’ve been wishing for.
- 300 HP Max Continuous
- 8-10% Torque increase over 520
- 150 RPM less than 520 = Greater Longevity
- 8-10% Increased Cruise Speed
- 8-10% Shorter Take-Off
185 IO-550 Engine Kit Includes:
- Mount Isolators
- Mount Bolts
- Locking Tabs
- Ground Straps
- Barrel Nuts
- Fluid Hose Kit
- Bushings
- Spacers
- Placards
- Man Pressure/Fuel Flow Gauge (Exchange)
- Tachometer (Exchange)
- Paperwork and STC
NOTE: Three blade engine mount required for 185 part number 0751007-16 at an additional cost.
Hartzell Trailblazer Propeller Upgrade
The new carbon fiber composite Hartzell Trailblazer series 82″ propeller is available for Cessna 185 models with the IO-550-D engine installed via Wipaire STC SA1522GL or Texas Skyways STC SA09960SC in both landplane and seaplane configurations. The Trailblazer propeller offers the following features.
- Durable, field-replaceable nickel cobalt leading edge
- Nickel erosion screen for foreign object damage protection
- Thinner blade with a wider chord for improved performance
- Designed to be quieter than comparable propellers
- Carbon fiber composition is 5-10x stronger than natural fiber propeller cores
- 14.6 lbs lighter than the Hartzell metal 80″ prop (model: PHC-C3YF-1RF/F8468A-6R)
- 3.1 lbs lighter than the McCauley 80″ prop (model: D3A34C401/90DFA-10)
Wing-X STOL Wing Extensions
Wipaire is an authorized distributor and installation center for Wing X STOL tip extensions for Cessna 180, 182, and 185. This modification is approved with various previously installed leading edge modifications as well as vortex generators.
Â
Â
WING-X STOL will increase your flight performance by as much as 30% and your gross takeoff weight by 50 to 400 Lbs depending on the models. You can now carry that extra passenger or payload and still have great performance!
Improve your aircraft performance by adding more than three feet to the wingspan or approx. 12.4 square feet of wing area to your aircraft. “More Wing is More Lift it’s that simple”. The Wing-X STOL modification has a specially engineered wing reinforcement along the main spar. This modification increases the overall strength of the wing and allows for an important gross weight increase on most models.
Cessna 170,172,175 airplanes will benefit from a GTOW increase varying from 50 to 125 pounds depending on the year and model.
All C-180 and C-182 owners will benefit with a GTOW of 2,950 lbs. approved on wheels, floats and skis as well as providing enhanced performance throughout the flight envelope.
Cessna 185 owners will immediately benefit from an increase of 175 lbs. in the useful load and a newly certified GTOW of 3,525 lbs. approved on wheels, skis, amphibs and straight floats.
Wipline® 3000 Floats
Whether on hard surface runways, grass strips or your favorite river or lake, the Wipline 3000 float gives you the best of both worlds. A fluted bottom skin with sister keels – or “Speed rails” – assures excellent performance in a wide range of water conditions. The largest baggage hatch in the business is standard in both floats (25 3/4 x 12 inches with 9.5 cubic feet storage space). The aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts are a perfect fit. The main keel has a removable wear strip for ease of maintenance. The latest technology enabled us to build the 3000 float to be both ultra light and still north-country rugged.
Wipline 3000 Floats are available for installation on:
Features & Benefits
- Amphibious or seaplane floats available
- Modern hydrodynamic design with fluted bottom skins, sister keels and high bow buoyancy to get off the water quickly and perform in a wide range of conditions
- Best nose and main gear on the market, proven in the field and imitated by competitors
- Internal cables for water rudder controls
- Non-skid coated, flat top decks for safety
- Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
- Two large float hatches for gear, measuring 25 3/4″ x 12″ with 50 pounds carrying capacity each
- Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
- Replaceable wear strips on main keel for ease of maintenance
Maule on Wipline 3000 Floats
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.
fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory
Specifications for Wipline 3000 Floats
| Float Dimensions | |
| Length – Seaplane | 20’1″ (6.12 m) |
| Length – Amphibian | 20’8″ (6.3 m) |
| Height – Hull | 2’5″ (0.74 m) |
| Width – Hull | 2’8″ (0.81 m) |
| Float Locker Capacity (each) | 50 lbs (22.7 kg) |
| Displacement in Fresh Water | |
| Amphibious Floats | 3,125 lbs (1,417 kg) |
| Seaplane Floats | 3,301 lbs (1,497 kg) |
| Maximum Flotation | |
| Amphibious Floats | 3,472 lbs (1,575 kg)1 |
| Seaplane Floats | 3,668 lbs (1,664 kg)1 |
| 1) Per FAR 23.751with 80% reserve buoyancy (2 floats) | |
| Weight for 3000 Float on a Cessna 180 | |
| Amphibian System Total Weight | 633 lbs (287 kg) |
| Amphibian Exchange Weight | 483 lbs (219 kg)2 |
| Seaplane System Total Weight | 432 lbs (198 kg) |
| Seaplane Exchange Weight | 282 lbs (128 kg)2 |
| Aircraft Gross Weight 180-180F | 2,850 lbs (1,293 kg) |
| Aircraft Gross Weight 180G-180K | 2,950 lbs (1,338 kg) |
| 2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. | |
| Weight for 3000 Floats on a Cessna 182 | |
| Amphibian System Total Weight | 641 lbs (291 kg) |
| Amphibian Exchange Weight | 498 lbs (226 kg)2 |
| Seaplane System Total Weight | 439 lbs (199 kg) |
| Seaplane Exchange Weight | 296 lbs (134 kg)2 |
| Aircraft Gross Weight | 3,250 lbs (1,474 kg) |
| 2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. | |
| Cessna 182 Performance on Amphibious Floats | |
| Engine | IO-540 (230 HP) |
| Take off run (land) | 1,174 ft (358 m) |
| Take off over 50 ft obstacle (land) | 1,730 ft (527 m) |
| Take off run (water) | 1,645 ft (501 m) |
| Take off over 50 ft obstacle (water) | 2,463 ft (751 m) |
| Rate of climb (per/min) | 749 ft (228 m) |
| Weight for 3000 Floats on a Cessna 185 | |
| Amphibian System Total Weight | 632 lbs (287 kg) |
| Amphibian Exchange Weight | 483 lbs (219 kg)2 |
| Seaplane System Total Weight | 432 lbs (198 kg) |
| Seaplane Exchange Weight | 282 lbs (128 kg)2 |
| Aircraft Gross Weight | 3,350 lbs (1,519 kg) |
| 2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight. | |
| Cessna 185 Performance on Amphibious Floats | |
| Engine | Continental IO-520 |
| Take off run (land) | 760 ft (231 m) |
| Take off over 50 ft obstacle (land) | 1,325 ft (404 m) |
| Take off run (water) | 1,125 ft (343 m) |
| Take off over 50 ft obstacle (water) | 1,710 ft (521 m) |
| Rate of climb (per/min) | 950 ft (290 m) |
Wipline 3000 Floats Gallery
-
- Cessna 180 on Wipline 3000 Floats
-
- Maule MX-7-235 on Wipline 3000 Floats
