Laser Gear Advisory – Exclusively From Wipaire

Wipaire’s exclusive, safety-enhancing Laser Gear Advisory is now included at no additional cost on new Wipline float purchases,
and is available for retrofit on Wipline-equipped aircraft.

The safety of Wipline floats has always been a top priority. Wipaire’s amphibious gear advisory system, well-known for its “Gear is up for water landing” and “Gear is down for runway landing” annunciations, has long been standard equipment on all amphibious Wipline floats. The laser gear advisory system, in contrast, remains quiet when the landing gear and detected surface are in agreement. The laser becomes active at approximately 400 feet above ground level and compares the gear position with the detected landing surface. In the event of a mismatch, the system reminds the pilot to “Check gear” around 50 feet above the surface, allowing the operator to initiate a go-around to address the gear position. In the event of a laser malfunction, the system controller will revert to the standard gear advisory voice annunciations.

 The Laser Gear Advisory is now included with all new amphibious float sales and is available for purchase separately. The laser system may be installed in the field or at Wipaire in South St. Paul, Minnesota. Contact your sales representative for installation details for your aircraft. If you have more questions or would like to purchase the new laser gear advisory system for an existing float installation please don’t hesitate to contact us!

How the Laser Gear Advisory Works

Checking the Terrain

At about 400 feet above ground level while preparing for landing the Laser Gear Advisory detects if you are over a water or land surface. After detecting the surface a light illuminates on the gear advisory display indicating either land or water surface.

Confirming Gear Position

At about 50 feet above ground level and below a certain speed if your gear is in the correct position for the landing surface there will be no further alerts and the surface landing light will remain lit to help advise your landing.

Alert

If the gear position is incorrect for the landing surface (or an asymmetrical gear position is detected) then a alert will sound. An audio alert of “check gear” will be repeated indicating that a go-around should be initiated and the gear position checked and adjusted. This alert may also be triggered if a water surface is very shallow, has large or dense debris or is extremely choppy. These may all be good reasons to reconsider your landing location.

Ready to Get Started?

  • Hidden

Wipline Floats

Wipline Floats

Wipaire is proud to manufacture the industries leading floats. Wipline floats are available for a variety of aircraft in both seaplane and amphibious configurations.

  • Amphibious or seaplane floats available
  • Best nose and main gear on the market, proven in the field and imitated by competitors (amphibious models)
  • Internal cables for water rudder controls (most model)
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
  • Float hatches for gear stowing (most models)
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
  • Replaceable wear strips on mail keel for ease of maintenance

Select an Aircraft to SEe Compatible Floats

American Champion

Scout 8GCBC

Aviat

Husky A1, A1-A, A1-B, A1-C

Cessna

170

172/175 Skyhawk

180 Skywagon

182 Skylane

185 Skywagon

206 Stationair

208 Caravan Series

Cub Crafters

Top Cub

de Havilland

DHC-2 MK1 Beaver

DHC-2 MK3 Beaver

DHC-6 Twin Otter

Maule

M6 235

M7-MT7

MX7 180-420

MX7-235

Pilatus

Porter PC-6



Piper

PA-12/PA-18 Cub

Quest

Kodiak

Or Select a Float MOdel

Wipline 2100 Floats

Wipline 2350 Floats

Wipline 3000 Floats

Wipline 3450 Floats

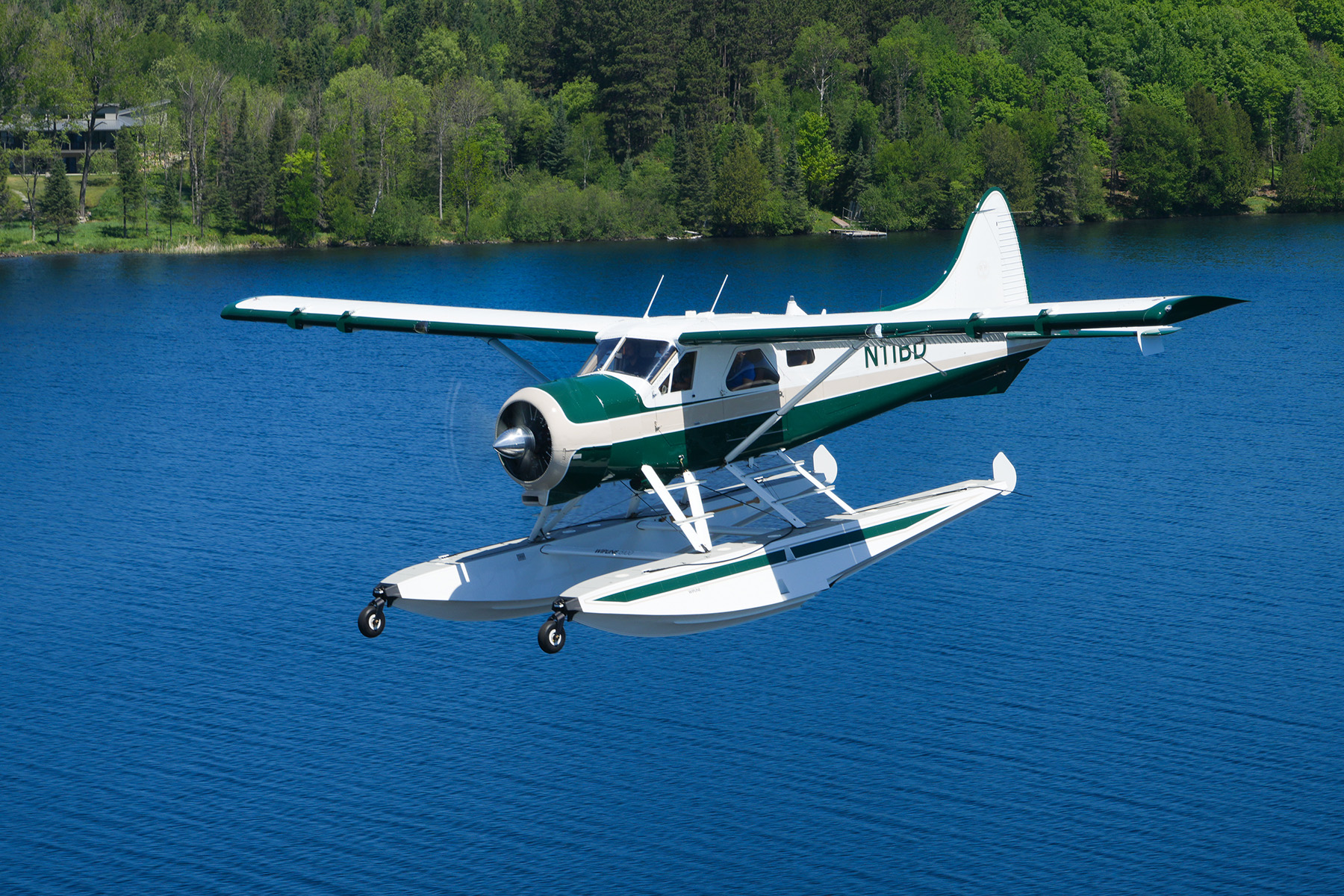

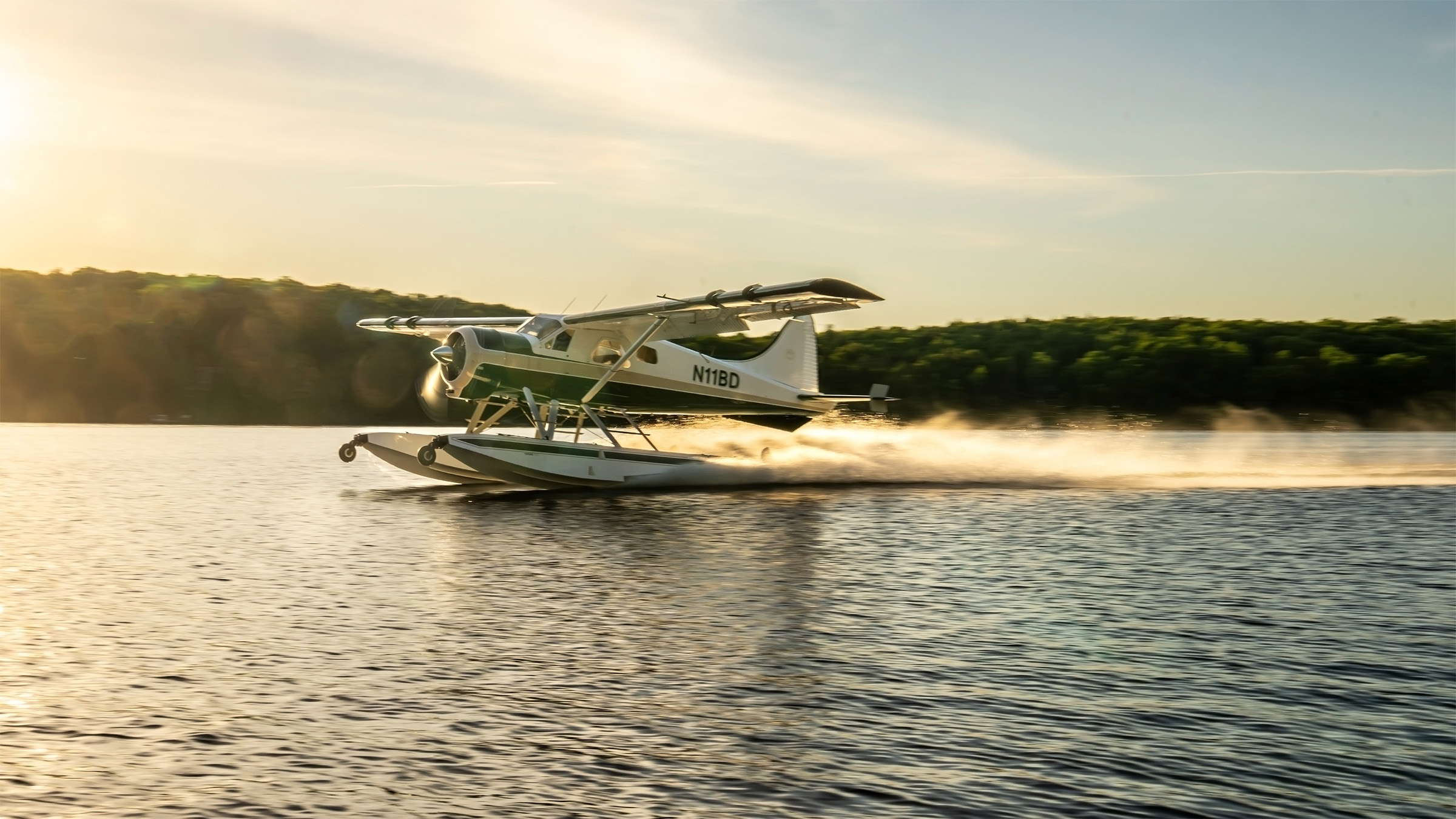

Wipline 6100 Floats

Wipline 8750 Floats

Wipline 10000 Floats

Wipline 13000 Floats

Ready to Get Started?

  • Hidden

Wipline Floats

Wipline® 2100 Floats

The Wipline 2100 float is the best performing float on the market in this category. It has outstanding handling qualities and is capable of supporting aircraft with gross weights up to 2400 pounds.

Wipline 2100 Floats are available for installation on:

Features & Benefits

  • Amphibious or seaplane floats available
  • High bow buoyancy and a higher deadrise angle on our forward bottoms for improved handling in wind and choppy water
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
  • Two large float hatches for gear, measuring 20 3/8″ by 10 1/2″ with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly

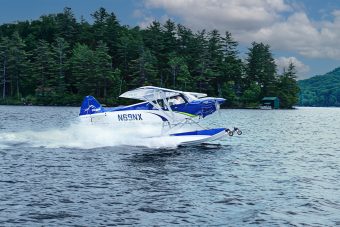

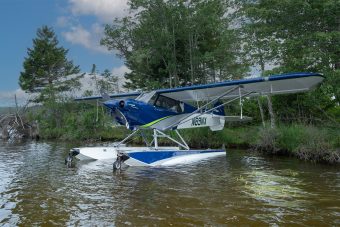

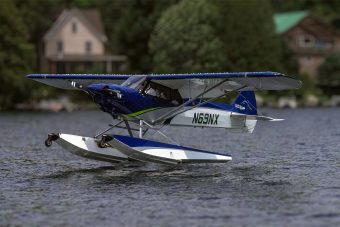

Wipline 2100 Floats on a CubCrafters XCub

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

CLICK HERE TO LEARN MORE

Specifications for Wipline 2100 Floats

Float Dimensions
Length – Seaplane17’7″ (5.36 m)
Length – Amphibian17’11” (5.46 m)
Height – Hull1’11” (0.58 m)
Width – Hull2’5″ (0.74 m)
Float Locker Capacity (each)50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats2,185 lbs (991 kg)
Seaplane Floats2,323 lbs (1,054 kg)

Maximum Flotation
Amphibious Floats2,428 lbs (1,101 kg)1
Seaplane Floats2,581 lbs (1,171 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)



Weight for 2100 Floats on PA-12
Amphibian System Total Weight 427 lbs (194 kg)
Amphibian Exchange Weight 329 lbs (149 kg)2
Seaplane System Total Weight 258 lbs (117 kg)
Seaplane Exchange Weight 160 lbs (72 kg)2
Aircraft Gross Weight 1,935 lbs (878 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.



Weight for 2100 Floats on PA-18 Super Cub
Amphibian System Total Weight 427 lbs (194 kg)
Amphibian Exchange Weight 329 lbs (149 kg)2
Seaplane System Total Weight 280 lbs (127 kg)
Seaplane Exchange Weight 182 lbs (82 kg)2
Aircraft Gross Weight 1,776 lbs (806 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.

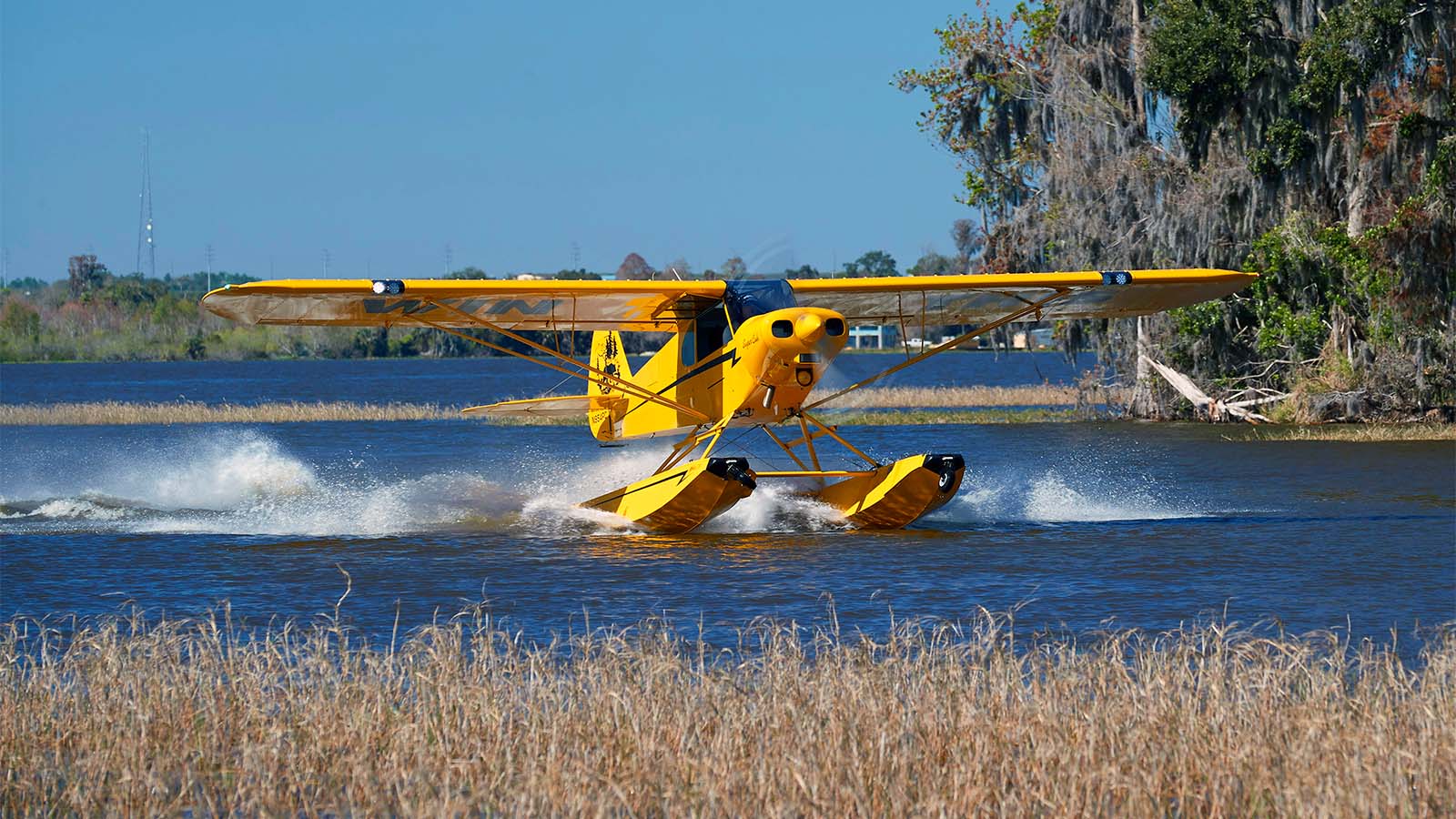

PA-18 Super Cub Performance on Amphibious Floats
Engine Lycoming O-320 (160 hp)
Take off run (land) 588 ft (179 m)
Take off over 50 ft obstacle (land) 1,176 ft (358 m)
Take off run (water) 776 ft (237 m)
Take off over 50 ft obstacle (water) 1,294 ft (394 m)
Rate of climb (per/min) 925 ft (282 m)



Weight for PA-18 Super Cub with 2,000 lb gross weight kit
Amphibian System Total Weight 429 lbs (195 kg)
Amphibian Exchange Weight 331 lbs (150 kg)2
Seaplane System Total Weight 282 lbs (128 kg)
Seaplane Exchange Weight 184 lbs (83 kg)2
Aircraft Gross Weight 2,000 lbs (907 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
PA-18 Super Cub at gross weight of 2,000 lbs
Performance on Amphibious Floats
Engine Lycoming O-320 (160 hp)
Take off run (land) 744 ft (227 m)
Take off over 50 ft obstacle (land) 1,488 ft (454 m)
Take off run (water) 1,174 ft (358 m)
Take off over 50 ft obstacle (water) 1,294 ft (394 m)
Rate of climb (per/min) 925 ft (282 m)



Weight
Amphibian System Total Weight 429 lbs (195 kg)
Amphibian Exchange Weight 331 lbs (151 kg)2
Seaplane System Total Weight 282 lbs (128 kg)
Seaplane Exchange Weight 184 lbs (84 kg)2
Aircraft Gross Weight 2,300 lbs (1,044 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
Performance on Amphibious Floats
Engine Lycoming O-360 (180 hp)
Take off run (land) 520 ft (159 m)
Take off over 50 ft obstacle (land) 1,800 ft (549 m)
Take off run (water) 1,100 ft (336 m)
Take off over 50 ft obstacle (water) 2,220 ft (677 m)
Rate of climb (per/min) 660 ft (202 m)



Weight
Amphibian System Total Weight 432 lbs (196 kg)
Amphibian Exchange Weight 349 lbs (158 kg)2
Seaplane System Total Weight 285 lbs (129 kg)
Seaplane Exchange Weight 202 lbs (92 kg)2
Aircraft Gross Weight 2,250 lbs (1,020 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
Performance on Amphibious Floats
Engine Lycoming O-360 (180 hp)
Take off run (land) 720 ft (219 m)
Take off over 50 ft obstacle (land) 1,429 ft (439 m)
Take off run (water) 913 ft (278 m)
Take off over 50 ft obstacle (water) 1,521 ft (464 m)
Rate of climb (per/min) 953 ft (290 m)


Weight
Amphibian System Total Weight438 lbs (199 kg)
Amphibian Exchange Weight292 lbs (178 kg)2
Seaplane System Total Weight293 lbs (133 kg)
Seaplane Exchange Weight142 lbs (110 kg)2
Aircraft Gross Weight2,150 lbs (975 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.

Weight
Amphibian System Total Weight433 lbs (197 kg)
Amphibian Exchange Weight296 lbs (134 kg)2
Seaplane System Total Weight289 lbs (131 kg)
Seaplane Exchange Weight152 lbs (69 kg)2
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.

Skyhawk ModelGross WeightEnginePropeller
172, 172A, B, C, D, E, F,
G, H, I, J, K, L		2,220 lbs (1,007 kg)StockStock
172A, B, C2,350 lbs (1,066 kg)Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP)***
172I, K, L, M, N2,300 lbs (1,043 kg)172 I, K, L To have Penn Yan Aero STC SA332GLMcCauley 1A200/DFA8243 FP
172P2,400 lbs (1,089 kg)172 I, K, L To have Penn Yan Aero STC SA332GLMcCauley 1A200/DFA8243 FP
F172D, E, F, G, H2,200 lbs (998 kg)StockStock
F172K, L2,220 lbs (1,007 kg)StockStock
F172M, N2,300 lbs (1,043 kg)StockStock
F172P2,400 lbs (1,089 kg)StockStock
1752,350 lbs (1,066 kg)StockStock
1752,350 lbs (1,066 kg)Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP)***
*** Propeller: McCauley 1A200/DFA 8243 FP, McCauley 1A200/WFA 8243 FP, Hartzell HC-C2YR-1BF/F8477-4 Constant Speed,
Hartzell HC-C2YK-1BF/F8477-4 Constant Speed

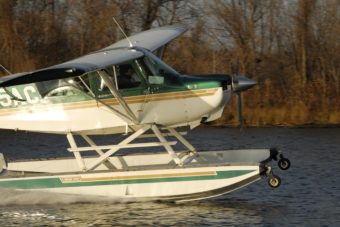

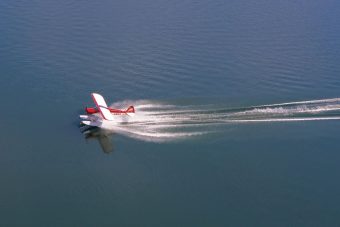

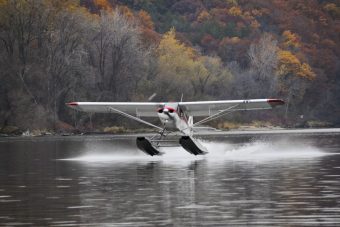

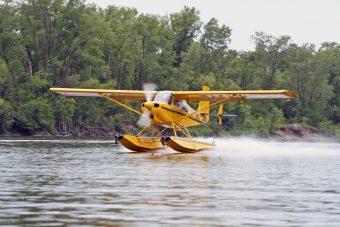

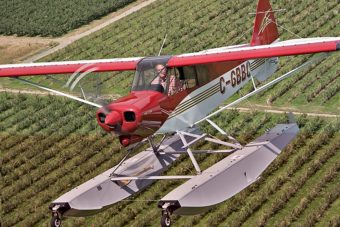

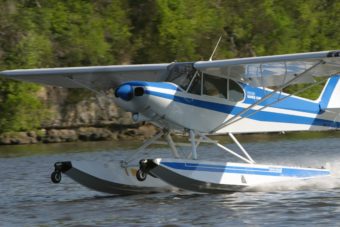

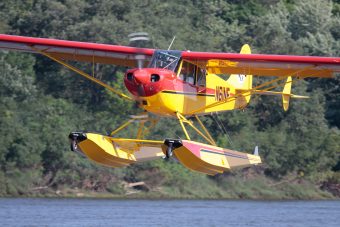

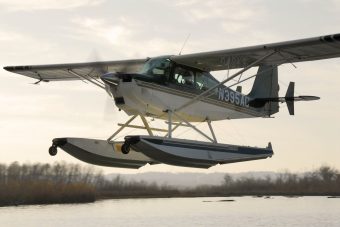

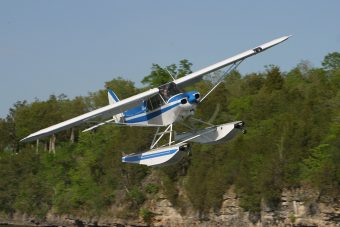

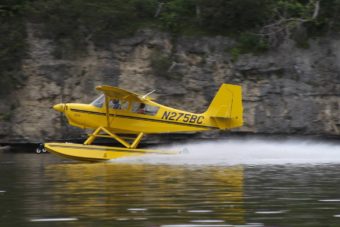

Wipline 2100 Floats Gallery

Ready to get started?

  • Hidden

Wipline Floats

Wipline® 2350 Floats

The Wipline 2350 float is the perfect addition to your light aircraft. With outstanding performance and handling parameters, you are sure to find an all new sense of adventure! Each float has large storage hatches that measure 20-3/8” by 10-1/2” that reveal six cubic feet of storage capacity. Wipline’s main gear utilizes a ‘rubber doughnut’ shock strut, which means that there is no air or oil to worry about. Wipline’s nose gear is so well proven that it has now become the industry standard. Whether you want the versatility of the amphibian or the simplicity of the straight float, you’ll find the Wipline 2350 to be the best in the industry.

Wipline 2350 Floats are available for installation on:

Features & Benefits

  • Amphibious or seaplane floats available
  • High bow buoyancy and a higher deadrise angle on our forward bottoms for improved handling in wind and choppy water
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
  • Two large float hatches for gear, measuring 20 3/8″ by 10 1/2″ with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly

Wipline 2350 Floats on a Cessna 172

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

CLICK HERE TO LEARN MORE

Specifications for Wipline 2350 Floats

Float Dimensions
Length – Seaplane 19’7″ (5.97 m)
Length – Amphibian 19’11” (6.07 m)
Height – Hull 1’11” (0.58 m)
Width – Hull 2’5″ (0.74 m)
Float Locker Capacity (each) 50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats 2,432 lbs (1,103 kg)
Seaplane Floats 2,570 lbs (1,166 kg)

Maximum Flotation
Amphibious Floats 2,702 lbs (1,226 kg)1
Seaplane Floats 2,855 lbs (1,295 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)



Specifications for the Cessna 172 on 2350 Floats

Weight
Amphibian System Total Weight 468 lbs (212 kg)
Amphibian Exchange Weight 331 lbs (150 kg)
Seaplane System Total Weight 305 lbs (138 kg)
Seaplane Exchange Weight 168 lbs (76 kg)
Skyhawk Model Gross Weight Engine Propeller
172A, B, C 2,450 lbs (1,111 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
172D, E, F, G, H, I, L 2,500 lbs (1,134 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
172I, K, L 2,500 lbs (1,134 kg) To have Penn Yan Aero STC SA332GL McCauley 1A200/DFA8243 FP
172M, N, P 2,550 lbs (1,157 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
172M, N, P 2,550 lbs (1,157 kg) To have Penn Yan Aero STC SA332GL McCauley 1A200/DFA8243 FP
172Q 2,550 lbs (1,157 kg) Stock McCauley 1A200/DFA8243 FP
172R, S 2,550 lbs (1,157 kg) Stock McCauley 1A200/WFA8243 FP
F172D, E, F, G, H, K, L 2,500 lbs (1,134 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
F172M, N, P 2,550 lbs (1,157 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
FR172E, F, G, H, J, K 2,550 lbs (1,157 kg) Stock McCauley 2A34C203/90DCA-10
P172D 2,500 lbs (1,134 kg) Stock McCauley 1D200/OM9044
P172D 2,500 lbs (1,134 kg) Lycoming O-360 (180 BHP) / Lycoming IO-360 (180 BHP) ***
R172K 2,550 lbs (1,157 kg) Stock McCauley 2A34C203/90DCA-10
175A, B, C 2,450 lbs (1,111 kg) Stock McCauley 1D200/OM9044
*** Propeller: McCauley 1A200/DFA 8243 FP, McCauley 1A200/WFA 8243 FP, Hartzell HC-C2YR-1BF/F8477-4 Constant Speed, Hartzell HC-C2YK-1BF/ F8477-4 Constant Speed

Wipline 2350 Floats Gallery

Ready to get started?

  • Hidden

Cessna 206 on Wipline 3450 Floats

Wipline Floats

Wipline® 3450 Floats

For outstanding performance and reliability on hard surface runways, grass strips or your favorite lake or river the Wipline 3450 floats give you the best of both worlds.

The Wipline 3450 float was designed using the latest C.A.D. (Computer Aided Design) technology. The aluminum parts and skins are laser cut and all rivet holes are pre-punched. This means replacement parts are a perfect fit. The main keel has a removable wear strip for ease of maintenance. With this technology we are able to build the 3450 float to be ultra light and still north-country rugged.

Wipline 3450 Floats are available for installation on:

Features & Benefits

  • Amphibious or seaplane floats available
  • Features 200 pounds more maximum flotation than our competitor (up to 4,000 pounds for the amphibious and 4,196 pounds for seaplane floats)
  • Significantly more forward buoyancy for safer and easier downwind taxiing and upwind turns
  • Largest gross weight increase in the market, 3,792 pounds approved for takeoff and landing weights
  • Four point strut attachment is more stable in all loading configurations, especially critical for heavy loads
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Internal cables for water rudder controls
  • Non-skid coated, flat top decks for safety
  • Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats
  • Two large float hatches for gear with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
  • Replaceable wear strips on main keel for ease of maintenance

Wipline 3450 Floats on a Cessna 206

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

CLICK HERE TO LEARN MORE

Specifications for Wipline 3450 Floats

Float Dimensions
Length – Seaplane 22’10” (6.96 m)
Length – Amphibian 23’5″ (7.13 m)
Height – Hull 2’5″ (0.74 m)
Width – Hull 2’8″ (0.81 m)
Float Locker Capacity (each) 50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats 3,600 lbs (1,633 kg)
Seaplane Floats 3,776 lbs (1,713 kg)

Maximum Flotation
Amphibious Floats 4,000 lbs (1,814 kg)1,2
Seaplane Floats 4,196 lbs (1,903 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)
2) 206H (normally aspirated) has a gross weight restriction of 3,775 lbs for land takeoff only.



Weight for 3450 Floats on a Cessna 206
Amphibian System Total Weight694 lbs (315 kg)
Amphibian Exchange Weight532 lbs (241 kg)3
Seaplane System Total Weight491 lbs (223 kg)
Seaplane Exchange Weight329 lbs (149 kg)3
Aircraft Gross Weight3,792 lbs (1,720 kg)
3) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.
Cessna 206 Performance on Amphibious Floats
Model206HT206H
EngineIO-540 (300 HP)TIO-540 (310 HP)
Take off run (land)1,146 ft (349 m)1,132 ft (345 m)
Take off over 50 ft obstacle (land)1,830 ft (558 m)1,876 ft (572 m)
Take off run (water)1,770 ft (539 m)1,821 ft (555 m)
Take off over 50 ft obstacle (water)2,850 ft (869 m)2,954 ft (900 m)
Rate of climb (per/min)770 ft (235 m)982 ft (299 m)

Wipline 3450 Floats Gallery

Ready to get started?

  • Hidden

Wipaire Products, Wipline Floats

Wipline® 6100 Floats

For outstanding performance and reliability at major international airports or in bush country, Wipaire presents the Wipline 6100 Float.

The 6100 Floats are true workhorses — yet minimal maintenance is required for years of dependable service. The floats are designed to allow full use of the new high-gross kits currently offered for the Mark I and Mark III Beaver and the Pilatus Turbo Porter. They provide similar takeoff performance to other floats, yet due to the unique aerodynamic design, they provide increased cruise speeds.

Wipline 6100 Floats are available for installation on:

Features & Benefits

  • Amphibious or seaplane floats available
  • Best nose and main gear on the market, proven in the field and imitated by competitors
  • Non-skid coated, flat top decks for safety
  • Two large float hatches for gear with 50 pounds carrying capacity each
  • Aluminum skins and parts are laser cut and rivet holes are pre-punched so that replacement parts fit perfectly
  • Replaceable wear strips on main keel for ease of maintenanceer
  • Enhanced safety with Wipaire’s exclusive Laser Gear Advisory system and gear position indicator on the float deck of amphibious floats

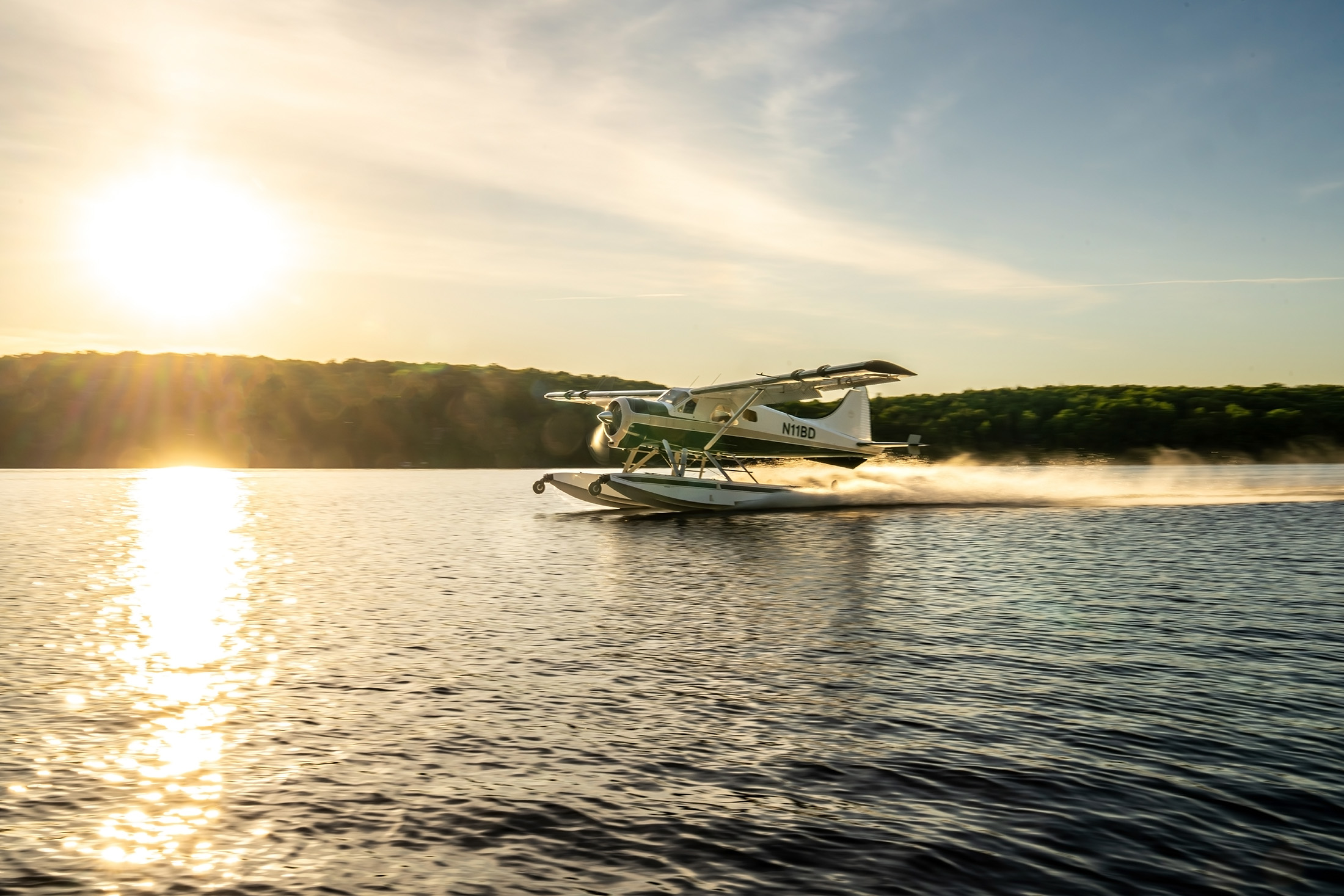

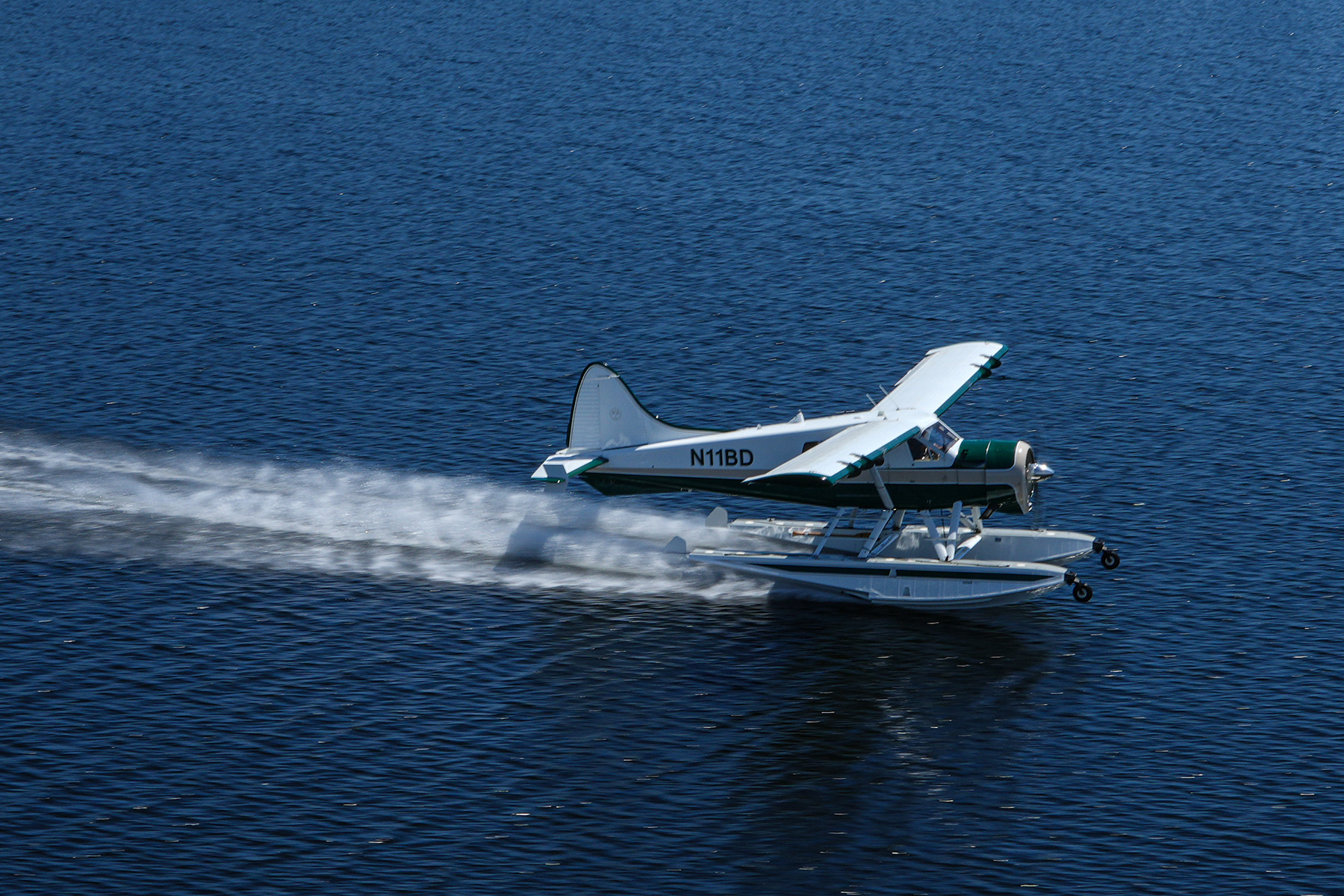

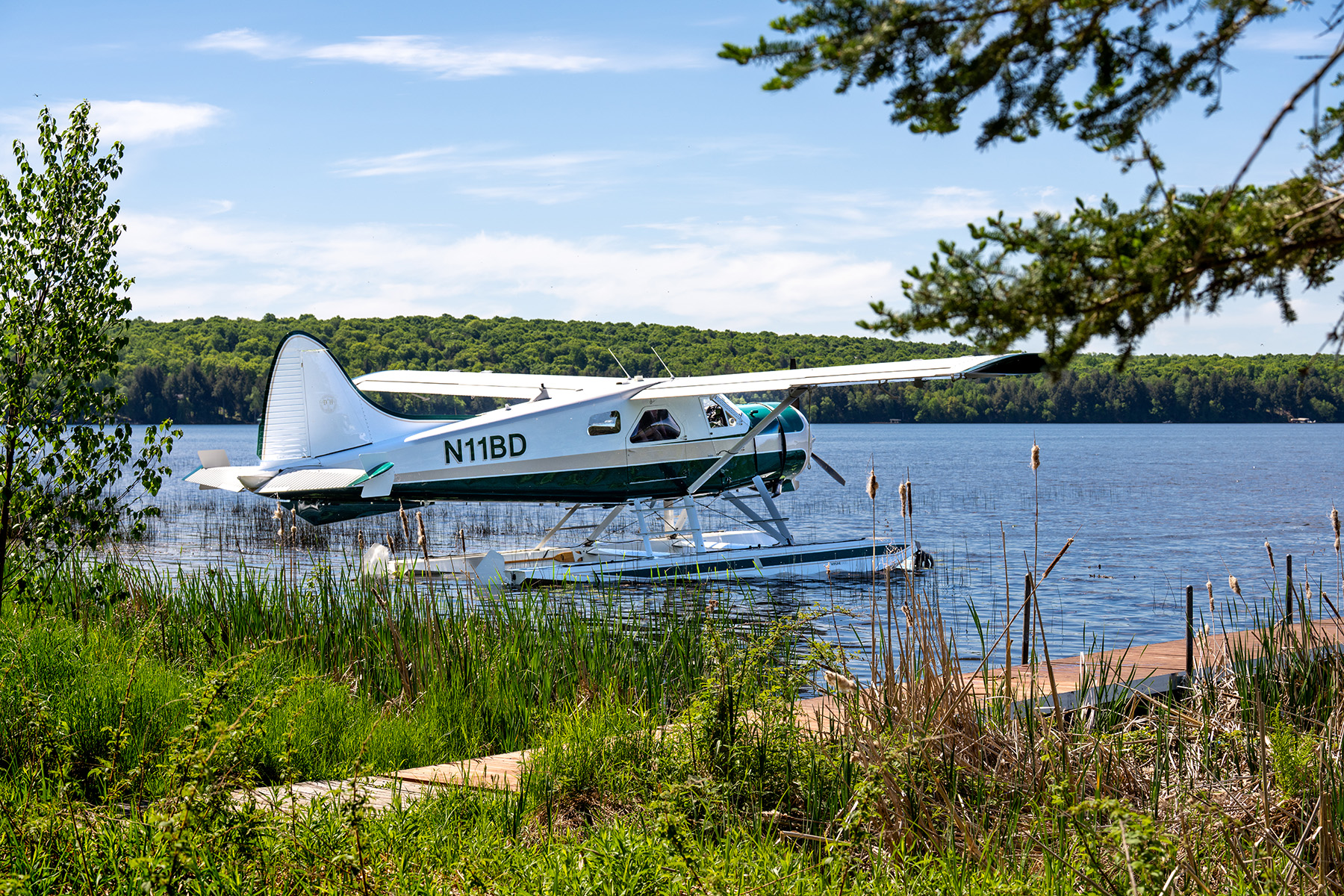

de Havilland Beaver on Wipline 6100 Floats

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

Now included at no additional cost on new Wipline float purchases, and avilable for retrofit on Wipline-equipped aircraft.

CLICK HERE TO LEARN MORE

fEATURING wIPAIRE'S eXCLUSIVE
Laser Gear Advisory

CLICK HERE TO LEARN MORE

Specifications for Wipline 6100 Floats

Float Dimensions
Length – Seaplane 24’7″ (7.49 m)
Length – Amphibian 25′ (7.62 m)
Height – Hull 2’10” (0.86 m)
Width – Hull 3’3″ (0.99 m)
Float Locker Capacity (each) 50 lbs (22.7 kg)
Displacement in Fresh Water
Amphibious Floats 5,518 lbs (2,503 kg)
Seaplane Floats 5,664 lbs (2,569 kg)

Maximum Flotation
Amphibious Floats 6,131 lbs (2,781 kg)1
Seaplane Floats 6,293 lbs (2,854 kg)1
1) Per FAR 23.751with 80% reserve buoyancy (2 floats)



Specifications for the Beaver on 6100 Floats

Weight for 6100 Floats on a de Havilland Beaver
Amphibian Exchange Weight 885 lbs (402 kg)2
Seaplane Exchange Weight 467 lbs (212 kg)2
Aircraft Gross Weight 5,600 lbs (2,540 kg)
2) Exchange weight is equal to the float installation weight minus aircraft landing gear weight.

Wipline 6100 Floats Gallery

Ready to get started?

  • Hidden
